ATV71HU22M3
Schneider Electric ATV71 variable speed drives
Manufacturer： ['square', 'schneider', 'telemecanique']
series introduction
The ATV71HU22M3 is a powerful and versatile variable frequency drive (VFD) designed to enhance the performance and efficiency of three-phase induction motors in various industrial applications. This drive series stands out due to its exceptional adaptability, robust design, and comprehensive feature set, catering to a wide array of automation requirements across multiple sectors.
One of the key features of the ATV71HU22M3 is its ability to deliver precise control of motor speed and torque, enabling optimal performance in diverse conditions. With a power range capable of handling significant loads, this VFD supports both scalar and vector control modes, ensuring that users can select the most suitable control method for their specific application. The unit also incorporates advanced safety features, including overload protection and short-circuit protection, safeguarding both the drive and the connected motor from potential damage.
The design characteristics of the ATV71HU22M3 prioritize ease of use and integration into existing systems. It features a user-friendly interface with an intuitive keypad and a clear display, facilitating straightforward setup and monitoring. Moreover, the drive is constructed to withstand harsh environments, with a robust enclosure that protects against dust, moisture, and temperature fluctuations. This makes it particularly well-suited for use in demanding industrial settings such as manufacturing plants, water treatment facilities, and HVAC systems.
Typical applications for the ATV71HU22M3 include fans, pumps, and conveyor systems, where variable speed control can lead to significant energy savings and increased operational efficiency. Its versatility allows for integration into both new installations and retrofitting projects, making it an ideal choice for engineers and maintenance professionals looking to enhance system performance. Additionally, the drive's compatibility with various communication protocols ensures seamless integration into modern automation frameworks, allowing for remote monitoring and control.
In summary, the ATV71HU22M3 series offers a robust, efficient, and flexible solution for industrial motor control, making it an essential component for businesses aiming to optimize performance and reduce energy consumption.

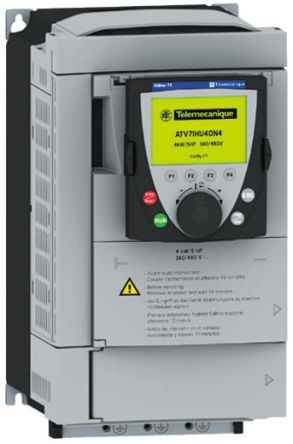

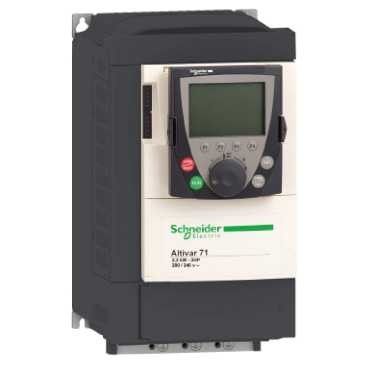

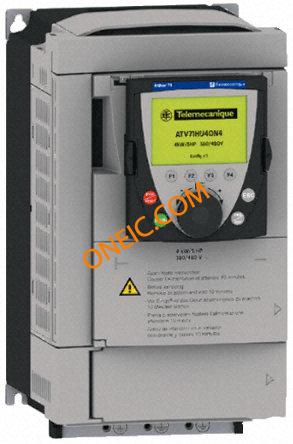

Images for reference
Image Preview
Image Preview
Image Preview
