ATV71HD90

Schneider Electric ATV71 motor drives

Manufacturer: ['square', 'schneider']

series introduction

The ATV71HD90 Series is a robust line of variable frequency drives (VFDs) designed to optimize the control of three-phase asynchronous motors across various industrial applications. This series is engineered for high performance and energy efficiency, making it an essential component for modern automation solutions. Key features of the ATV71HD90 Series include an advanced control algorithm that allows for precise speed and torque control, providing enhanced operational efficiency and improved process management. With a power range that accommodates diverse motor sizes, the ATV71HD90 Series is versatile enough to suit a wide array of applications.

The design characteristics of the ATV71HD90 Series are tailored for durability and ease of integration. Each drive features a compact and modular design, enabling simple installation and maintenance. The user-friendly interface includes a clear display and intuitive navigation, which simplifies programming and monitoring tasks. Furthermore, the drives are equipped with built-in communication protocols, supporting seamless integration into existing network infrastructures, including Modbus and Ethernet/IP, thereby facilitating real-time data exchange and remote control capabilities.

These drives are particularly well-suited for applications in sectors such as manufacturing, water treatment, HVAC systems, and material handling. In manufacturing, the ATV71HD90 Series can effectively control conveyor belts, pumps, and fans, enhancing process efficiency while reducing energy consumption. In the HVAC sector, these drives optimize the performance of heating and cooling systems, contributing to energy savings and improved comfort levels. Additionally, their capability to handle dynamic loads makes them ideal for industrial machinery that requires variable speed operation.

In summary, the ATV71HD90 Series stands out for its advanced control features, user-friendly design, and adaptability across various industrial environments. With its commitment to energy efficiency and operational excellence, this series is an invaluable asset for industries looking to enhance productivity and reduce operational costs.

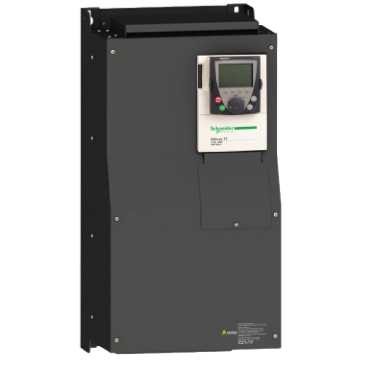

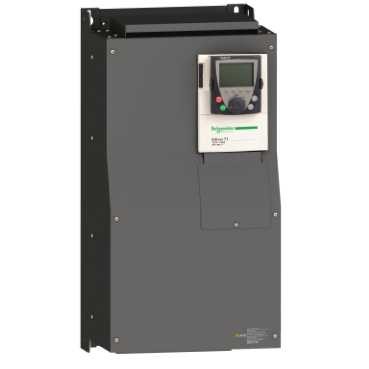

Images for reference

Image Preview

Image Preview

Image Preview

Image Preview

Datasheets

Partlist

ATV71HD90N4
ATV71HD90N4D
ATV71HD90Y
