ATV71HD15N4Z

Variable speed motor drives for industrial applications, up to 20HP

Manufacturer: schneider

series introduction

# Introduction to the ATV71HD15N4Z Product Series

## Overview
The ATV71HD15N4Z is a cutting - edge product series within the realm of industrial variable speed drives, designed and engineered by Schneider Electric. These drives are specifically crafted to meet the diverse and demanding requirements of modern industrial applications, offering high - performance, reliability, and energy - efficiency.

## Key Features

### Power and Performance
- **High - Power Output**: The ATV71HD15N4Z series is capable of delivering a substantial power output, making it suitable for driving large - scale industrial motors. With a well - designed power electronics architecture, it can handle high - current loads without compromising on performance. This enables it to be used in applications such as conveyor systems, pumps, and fans in heavy - duty industries.
- **Precise Speed Control**: It offers extremely precise speed control of motors. Using advanced control algorithms, the drive can maintain a stable motor speed even under varying load conditions. This precision is crucial in applications where consistent product quality depends on accurate motor speed, such as in textile manufacturing or food processing.

### Energy Efficiency
- **Optimized Energy Consumption**: The series is equipped with energy - saving features that help reduce overall power consumption. It can automatically adjust the motor's speed according to the load requirements, ensuring that the motor operates at its most efficient point. For example, in a water pumping system, when the demand for water is low, the drive can slow down the pump motor, resulting in significant energy savings over time.
- **Regenerative Braking**: Some models in the ATV71HD15N4Z series support regenerative braking. When the motor is decelerating or braking, the drive can convert the kinetic energy of the motor into electrical energy and feed it back into the power supply. This not only saves energy but also reduces the wear and tear on mechanical braking systems.

### Advanced Control and Communication
- **Multiple Control Modes**: The drive offers a variety of control modes, including scalar control, vector control, and sensorless vector control. This flexibility allows users to choose the most appropriate control mode based on the specific requirements of their application. For instance, vector control provides high - torque performance and precise speed regulation, making it ideal for applications that require rapid acceleration and deceleration.
- **Comprehensive Communication Protocols**: It supports a wide range of communication protocols, such as Modbus, Profibus, CANopen, and Ethernet. This enables seamless integration with other industrial automation devices and systems, such as programmable logic controllers (PLCs) and human - machine interfaces (HMIs). Through these communication interfaces, users can monitor and control the drive remotely, collect data for analysis, and implement complex automation strategies.

### Protection and Reliability
- **Overload and Overvoltage Protection**: The ATV71HD15N4Z series is equipped with comprehensive protection mechanisms to safeguard the drive and the connected motor. It can detect and respond to overload conditions, preventing damage to the motor and the drive itself. Additionally, overvoltage protection ensures that the drive can withstand voltage spikes in the power supply, enhancing its reliability in harsh industrial environments.
- **Thermal Protection**: The drive has built - in thermal protection features that monitor the temperature of critical components. If the temperature exceeds a safe limit, the drive can take appropriate actions, such as reducing the motor speed or shutting down the system to prevent overheating and potential damage.

## Applications
- **Industrial Manufacturing**: In manufacturing plants, the ATV71HD15N4Z series can be used to drive motors in various production processes, such as in machine tools, packaging machines, and assembly lines. Its precise speed control and high - performance capabilities ensure smooth and efficient operation, improving productivity and product quality.
- **Water and Wastewater Treatment**: For water pumping systems and wastewater treatment

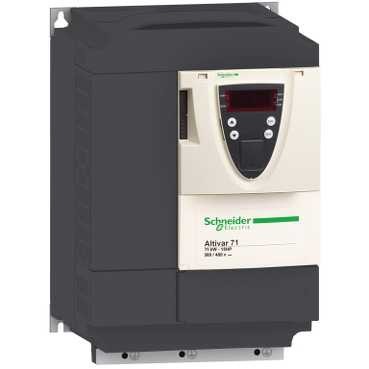

Images for reference
