ATV71H075

Schneider Electric ATV71 series variable speed drives

Manufacturer: ['square', 'schneider', 'telemecanique']

series introduction

The ATV71H075 Series is a robust line of variable speed drives (VSDs) designed to optimize motor control across a wide range of industrial applications. These drives are engineered to enhance operational efficiency, reduce energy consumption, and provide precise motor management, making them an invaluable asset in modern automation systems. With a power rating of 75 kW, the ATV71H075 is well-suited for controlling three-phase asynchronous motors, allowing for seamless integration into various industrial environments.

One of the key features of the ATV71H075 Series is its advanced control algorithms, which include both scalar and vector control modes. This flexibility enables users to select the most appropriate control method for their specific application, ensuring optimal performance under varying load conditions. Additionally, the drive supports a wide input voltage range, typically between 380V to 480V, making it adaptable to different power supply configurations and enhancing its usability in diverse global markets.

The design of the ATV71H075 emphasizes reliability and durability. It is equipped with a robust cooling system that allows for operation in challenging environments, all while maintaining a compact footprint. The drive also features built-in safety functions, such as an integrated emergency stop and motor overheating protection, which contribute to a safer working environment and prolong the lifespan of the connected equipment.

Suitable use cases for the ATV71H075 include conveyor systems, pumps, fans, and compressors in various sectors, such as manufacturing, water treatment, and HVAC. Its ability to provide precise speed and torque control makes it ideal for applications requiring consistent performance and energy efficiency. Moreover, the drive's user-friendly interface simplifies setup and programming, enabling quick deployment and minimal downtime.

In summary, the ATV71H075 Series is a versatile, high-performance variable speed drive designed to meet the demands of modern industrial applications. Its advanced control capabilities, robust design, and user-friendly features make it an excellent choice for enhancing motor control, improving energy efficiency, and ensuring reliable operation across a wide range of settings.

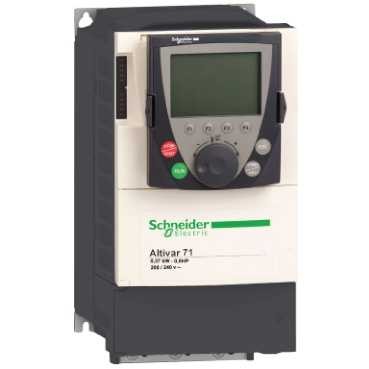

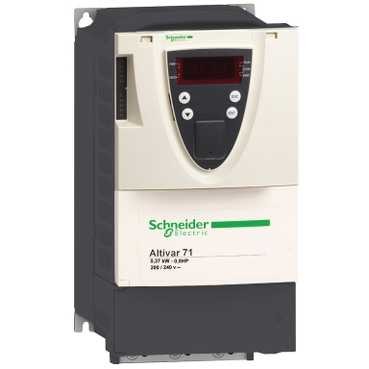

Images for reference

Image Preview

Image Preview

Image Preview

Image Preview

Image Preview

Image Preview

Datasheets

Partlist

ATV71H075M3
ATV71H075M3383
ATV71H075M3S337
ATV71H075M3Z
ATV71H075N4
ATV71H075N4383
ATV71H075N4S337
ATV71H075N4Z
