ATV61HU22
Schneider Electric ATV61 variable speed drives
Manufacturer： ['square', 'schneider', 'telemecanique']
series introduction
The ATV61HU22 series is a robust line of variable frequency drives (VFDs) engineered for controlling three-phase asynchronous motors in a variety of industrial applications. Designed with versatility and efficiency in mind, these drives offer an extensive range of features that enhance motor control while optimizing energy consumption. The ATV61HU22 series supports a wide input voltage range of 380V to 480V and provides power ratings from 0.75 kW to 22 kW, making it suitable for diverse applications, from small machinery to larger industrial processes.
One of the key features of the ATV61HU22 series is its advanced control algorithms, which allow for precise motor speed control and improved torque performance. The built-in PID controller enables seamless integration into closed-loop applications, providing consistent performance under varying load conditions. Additionally, the series includes a user-friendly interface with an intuitive display, simplifying the setup and monitoring processes. This ease of use is complemented by extensive connectivity options, including Modbus, CANopen, and Ethernet/IP protocols, facilitating integration into existing automation systems.
The design of the ATV61HU22 series emphasizes durability and reliability, featuring a compact footprint that allows for flexible installation in restricted spaces. The drives are built to withstand harsh operating environments, with IP20-rated enclosures that protect against dust and water ingress. Furthermore, the series incorporates advanced thermal management systems to ensure optimal performance, even under high ambient temperatures.
Ideal use cases for the ATV61HU22 series range from HVAC systems, where precise airflow control is essential, to conveyor systems in manufacturing lines that require variable speed control for efficient operation. The series is also extensively employed in pump and fan applications, where energy savings and operational efficiency are paramount. With its blend of advanced technology, robust design, and user-friendly features, the ATV61HU22 series stands out as a reliable solution for enhancing the performance of motor-driven systems across a wide array of industries.

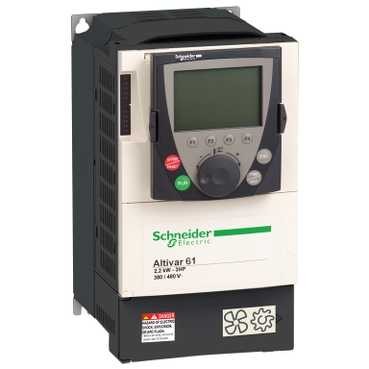

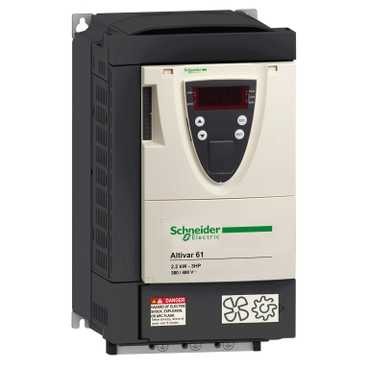

Images for reference
Image Preview
Image Preview
Image Preview
