ATSAM3S2AA

32 - bit ARM Cortex M3 microcontrollers

Manufacturer: ['atmel', 'microchip']

series introduction

The ATSAM3S2AA Series is a versatile family of microcontrollers from the Atmel SAM3S series, designed to cater to a range of embedded applications requiring robust performance and efficiency. These microcontrollers are built around a 32-bit ARM Cortex-M3 core, operating at speeds up to 84 MHz, which enables rapid processing for demanding tasks. The ATSAM3S2AA Series features a rich set of peripherals, including multiple USARTs, SPI, I2C interfaces, and an advanced 12-bit ADC, allowing for seamless integration into various systems.

One of the standout characteristics of the ATSAM3S2AA Series is its flexible memory configuration, which includes up to 512 KB of Flash memory and 100 KB of SRAM. This architecture not only accommodates extensive program storage but also provides ample workspace for complex applications. The microcontrollers are designed with power efficiency in mind, featuring multiple operating modes that help minimize energy consumption, making them an excellent choice for battery-operated devices.

The ATSAM3S2AA Series microcontrollers are particularly well-suited for applications in industrial automation, consumer electronics, and automotive systems. Their high-speed processing capabilities, coupled with a broad range of connectivity options, make them ideal for applications requiring real-time data processing and communication, such as motor control, sensor integration, and human-machine interfaces. Additionally, the series supports various development environments, providing developers with the flexibility to utilize their preferred tools for rapid prototyping and product development.

In summary, the ATSAM3S2AA Series offers a powerful and adaptable solution for a diverse array of embedded applications. Its combination of high performance, extensive peripheral support, and energy-efficient operation positions it as a leading choice for engineers looking to design reliable and efficient embedded systems across multiple industries. Whether in consumer devices or critical industrial applications, the ATSAM3S2AA Series microcontrollers deliver the performance and features needed to meet today’s complex design challenges.

Images for reference

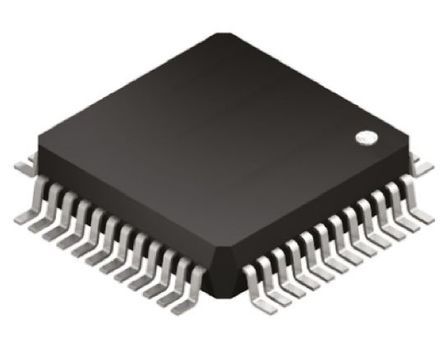

48-LQFP

48-LQFP

48-VQFN

48-VQFN

Image Preview

Image Preview

related Documents

Datasheets

Partlist

ATSAM3S2AAAU
ATSAM3S2AA-AU
ATSAM3S2AA-AUR
ATSAM3S2AAMU
ATSAM3S2AA-MU
ATSAM3S2AA-MUR
