AT90PWM3-16
8 - bit AVR microcontrollers in various packages
Manufacturer： ['atmel', 'microchip']
series introduction
The AT90PWM3-16 Series is an advanced line of 8-bit microcontrollers that seamlessly integrates performance and versatility, making it a prime choice for applications requiring precise control and efficient processing. Designed by Atmel (now part of Microchip Technology), these microcontrollers are particularly well-suited for automotive and industrial applications, offering a unique blend of features tailored for efficient motor control, signal processing, and communication tasks.
One of the standout features of the AT90PWM3-16 Series is its high-performance AVR architecture, which operates at a clock frequency of up to 16 MHz. This architecture ensures rapid processing capabilities, enabling the microcontroller to handle complex algorithms and control tasks with ease. The series incorporates a rich set of peripherals, including multiple Pulse Width Modulation (PWM) channels, analog-to-digital converters (ADCs), and serial communication interfaces, allowing for a wide range of input and output operations.
The design characteristics of the AT90PWM3-16 microcontrollers emphasize flexibility and efficiency. With up to 16 KB of programmable Flash memory and 1 KB of SRAM, these devices provide ample space for application code and data storage. The microcontroller’s compact size and low power consumption make it ideal for battery-powered applications, ensuring longer operational life without compromising performance. Additionally, the series supports a variety of development tools, promoting rapid prototyping and streamlined design processes.
Typical use cases for the AT90PWM3-16 Series include motor control applications, such as brushless DC motors, where the microcontroller's PWM capabilities allow for precise speed and torque regulation. Furthermore, it is commonly employed in audio applications for digital signal processing, as well as in automotive systems for sensor interfacing and control tasks. The extensive range of features and robust performance of the AT90PWM3-16 Series positions it as a reliable solution for engineers aiming to create innovative and efficient designs in both consumer and industrial sectors.
Images for reference
32-QFN Pkg

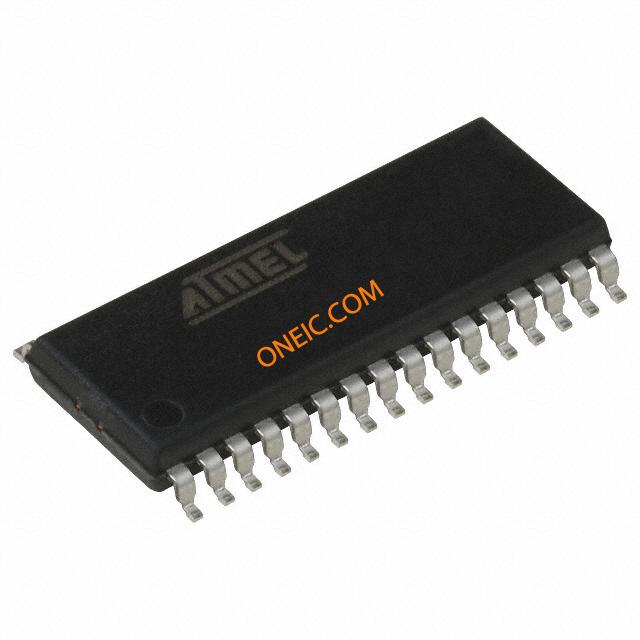

32-SOIC
