AT45DB321D-MU
32MB serial flash memory chips for industrial applications
Manufacturer： ['microchip', 'atmel', 'adesto-technologies']
series introduction
# AT45DB321D - MU Product Series Introduction
## 1. Overview
The AT45DB321D - MU belongs to a high - performance product series of data storage devices. Developed by a leading semiconductor manufacturer, this series is designed to meet the diverse data storage needs in various electronic applications. With its advanced technology and reliable performance, it has become a popular choice for engineers and designers in the field of embedded systems, consumer electronics, and industrial control.
## 2. Key Features
### 2.1 Storage Capacity
The AT45DB321D - MU offers a substantial storage capacity of 32 megabits (4 megabytes). This large capacity allows it to store a significant amount of data, such as program code, configuration data, sensor readings, and user - generated content. Whether it's for storing long - term data logs in an industrial monitoring system or caching multimedia files in a consumer device, the ample storage space ensures that users can meet their data - storage requirements.
### 2.2 Non - Volatile Memory
One of the most important features of this product series is its non - volatile nature. Non - volatile memory retains data even when the power supply is removed. This is crucial in applications where data integrity must be maintained during power outages or system resets. For example, in automotive electronics, the AT45DB321D - MU can store critical vehicle configuration data that needs to be available every time the vehicle is started.
### 2.3 High - Speed Data Transfer
The AT45DB321D - MU supports high - speed data transfer rates. It uses a Serial Peripheral Interface (SPI), which enables fast communication between the memory device and the host microcontroller or other system components. The high - speed data transfer capability reduces the time required to read from or write to the memory, improving the overall system performance. This is especially beneficial in applications that require real - time data processing, such as high - speed data acquisition systems.
### 2.4 Low Power Consumption
In today's energy - conscious world, low power consumption is a highly desirable feature. The AT45DB321D - MU is designed to operate with minimal power requirements. It has different power - saving modes, such as standby and deep - sleep modes, which can be activated when the device is not in use. This not only extends the battery life in portable devices but also reduces the overall power consumption in larger systems, leading to cost savings and environmental benefits.
### 2.5 Reliability and Endurance
The product series is built with high - quality materials and advanced manufacturing processes, ensuring high reliability and endurance. It can withstand a large number of program/erase cycles, typically up to 1 million cycles. This makes it suitable for applications where frequent data updates are required, such as in smart meters that need to record electricity consumption data regularly.
## 3. Package and Pinout
The AT45DB321D - MU comes in a compact and industry - standard package. The package is designed to be easily integrated into printed circuit boards (PCBs). The pinout of the device is well - defined, with clear connections for power, ground, SPI interface signals (such as clock, data input, data output, and chip select), and other control signals. This makes it straightforward for designers to connect the device to the rest of the system and reduces the complexity of the PCB layout.
## 4. Applications
### 4.1 Embedded Systems
In embedded systems, the AT45DB321D - MU can be used to store the firmware of the microcontroller. It provides a reliable and non - volatile storage solution for the program code, ensuring that the system can boot up correctly and operate stably. Additionally, it can be used to store
Images for reference
8-VDFN

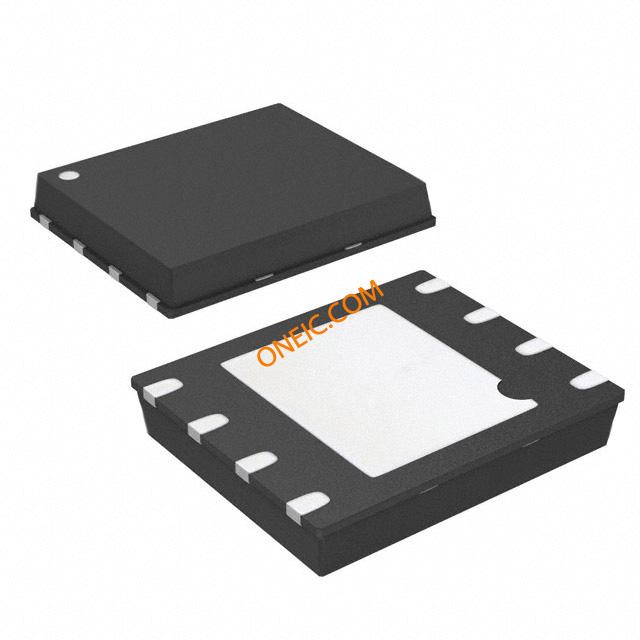

8-VFQFN
