AS5262
12 - bit rotary position sensors and adapter board
Manufacturer： ams
series introduction
The AS5262 Series is a cutting-edge line of programmable angle sensors designed for precise position measurement in dynamic applications. These sensors leverage advanced magnetic sensing technology to deliver high accuracy and resolution, making them ideal for a variety of industrial and automotive applications. With a robust construction and a high level of integration, the AS5262 Series provides a reliable solution for applications where precise angular measurement is critical.
One of the standout features of the AS5262 Series is its capability to offer a wide range of programmable output options, allowing users to tailor the sensor’s functionality to meet specific application requirements. With a resolution of up to 12 bits and an impressive measurement range of up to 360 degrees, these sensors can accurately track angular positions in real-time. Furthermore, the AS5262 Series includes built-in diagnostic features that enhance system reliability by detecting issues such as sensor malfunction and magnetic interference.
The design characteristics of the AS5262 Series focus on versatility and ease of integration. Featuring a compact package and simplified wiring, these sensors can be seamlessly integrated into both new and existing systems. The ability to operate over a wide temperature range ensures that the AS5262 can perform reliably in harsh environmental conditions, making it suitable for outdoor and industrial applications.
The AS5262 Series is particularly well-suited for use cases in robotics, automotive steering systems, and industrial automation, where precise angular measurements are paramount. Its high level of precision and diagnostic capabilities make it an excellent choice for applications requiring real-time feedback and control. Additionally, these sensors find typical applications in motor control, tilt sensing, and any system that demands reliable position tracking.
In summary, the AS5262 Series stands out as a versatile and reliable solution for high-precision angle measurement, combining advanced technology with robust performance to meet the demands of a variety of industries.
Images for reference

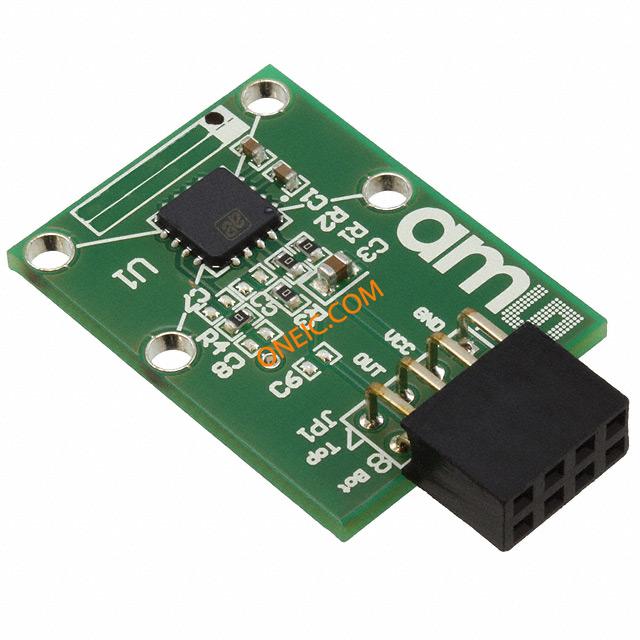

AS5262-EK-AB
16-QFN
16-VQFN
