AS5215OM

32-QFN rotary encoder ICs

Manufacturer: ['ams', 'austriamicrosystems']

series introduction

The AS5215OM Series is an advanced line of magnetic rotary position sensors designed to deliver precision and reliability in a wide range of industrial and consumer applications. These sensors utilize a contactless Hall effect technology, ensuring high accuracy and durability, making them ideal for environments where traditional mechanical sensors might fail due to wear and tear. The AS5215OM Series stands out for its robust design, featuring a compact housing that facilitates easy integration into various systems while maintaining a low profile.

One of the key features of the AS5215OM Series is its impressive resolution, which allows for precise angle measurement with minimal error. The sensors provide absolute position feedback, making them suitable for applications requiring exact positioning, such as robotics, automotive steering systems, and automation equipment. With a wide operating temperature range, the AS5215OM is engineered to function reliably in extreme conditions, from -40°C to +125°C, ensuring consistent performance across diverse environments.

The AS5215OM Series also incorporates advanced digital interfaces, such as SPI and I2C, enabling seamless communication with microcontrollers and other digital systems. This feature simplifies integration into existing designs while providing flexibility for future enhancements. The sensors are equipped with programmable settings, allowing users to adjust parameters to meet specific application needs, further enhancing their versatility.

Typical applications for the AS5215OM Series include position sensing in electric motors, joystick controls, and industrial machinery, where accurate rotational feedback is crucial. Their robustness and precision make them a preferred choice in automotive applications, including throttle control and gear shifting systems, as well as in consumer electronics for user interface controls. With their combination of innovative design, reliability, and high performance, the AS5215OM Series sensors are positioned to meet the demanding requirements of modern applications across various industries.

Images for reference

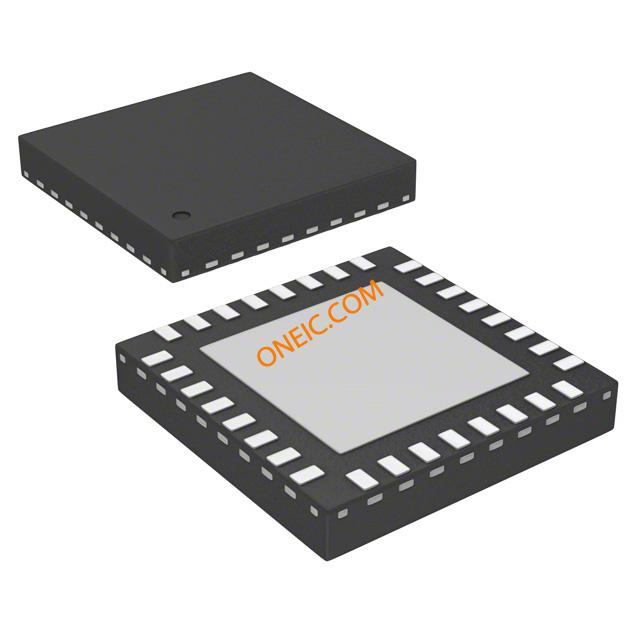

32-QFN Pkg

32-QFN Pkg

Image Preview

Image Preview

related Documents

Datasheets

Partlist

AS5215OM
AS5215OM-500
AS5215OM-HMFM
AS5215OM-HMFP
AS5215OMHMFP
AS5215OM-HMFP-500
