AS5132
Boards and sensors for rotary position sensing
Manufacturer： ['ams', 'ams-ag']
series introduction
The AS5132 Series is a highly advanced line of magnetic rotary position sensors designed for precise angle measurement in a variety of applications. Utilizing a contactless Hall effect technology, the AS5132 ensures exceptional accuracy and reliability, making it an ideal choice for both industrial and consumer applications. This product series features a resolution of up to 12 bits, enabling it to deliver precise angle detection with minimal error, even in challenging environments.
One of the standout features of the AS5132 Series is its robust design, which includes a wide operating voltage range of 3.3V to 5.5V, allowing it to be integrated into various systems without extensive power supply modifications. The device supports multiple communication interfaces, including SPI and I2C, offering flexibility in system integration and facilitating seamless data transfer to microcontrollers or processors. Furthermore, the AS5132 incorporates programmable features, allowing users to fine-tune settings such as zero position and direction of rotation, enhancing its versatility for different applications.
The AS5132 Series is particularly well-suited for applications requiring precise rotational position feedback, such as robotics, automotive steering systems, and industrial automation. In robotics, these sensors provide accurate positioning for servo motors, enabling more efficient movement and control. In automotive applications, they play a crucial role in steering angle measurement, contributing to enhanced vehicle stability and safety systems. Additionally, the sensors are suitable for use in consumer electronics, such as gaming controllers and smart home devices, where precise input control is essential.
With its combination of high precision, flexible integration options, and robust design, the AS5132 Series stands out as a preferred choice for engineers and designers seeking reliable and accurate angle measurement solutions across various industries. Whether in high-performance machinery or everyday consumer devices, the AS5132 ensures that users can achieve optimal performance and reliability in their applications.
Images for reference

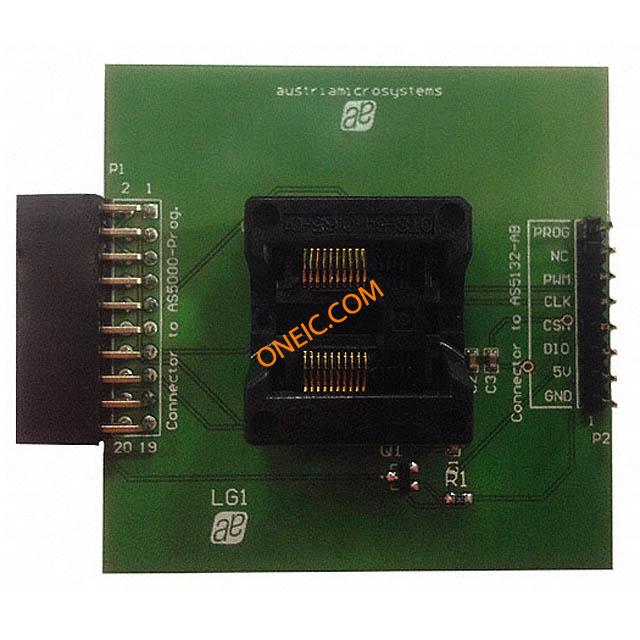

AS5132 PB

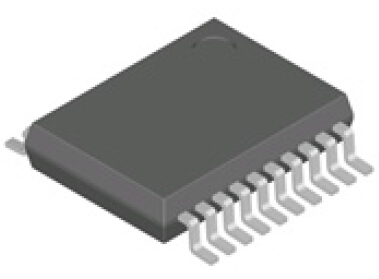

20-SSOP
Image Preview
