AS5048B
Tools and components for magnetic sensing
Manufacturer： ['ams', 'ams-ag']
series introduction
The AS5048B Series represents a cutting-edge line of contactless magnetic rotary position sensors that deliver high precision and reliability for a wide array of applications. Designed by experts in the field of sensing technology, the AS5048B offers a robust solution for measuring angular position with an impressive resolution of up to 14 bits. This level of accuracy makes it an ideal choice for applications where precise positioning is crucial, such as robotics, industrial automation, and automotive systems.
One of the standout features of the AS5048B Series is its non-contact magnetic sensing capability, which eliminates wear and tear associated with traditional mechanical encoders. By using a simple magnet placed on the rotating shaft, the AS5048B can accurately detect angular displacement without being affected by dust, dirt, or moisture. This durability is complemented by a wide operating temperature range of -40°C to +125°C, ensuring reliable performance in harsh environmental conditions.
The AS5048B is designed with versatility in mind. It supports a variety of communication interfaces, including SPI and PWM output, facilitating easy integration into existing systems. Additionally, the device features a configurable resolution and can be set to zero position with a simple command, making it adaptable for different applications and user requirements. The series also includes built-in diagnostics to monitor the status of the sensor, enhancing reliability and reducing maintenance costs.
Common use cases for the AS5048B Series include applications in servo motors, robotics, and automotive steering systems, where accurate position feedback is critical for performance and safety. Furthermore, its compact form factor and low power consumption make it suitable for portable devices and battery-operated applications. With its combination of high precision, robust design, and flexible integration options, the AS5048B Series stands out as a premier choice for engineers seeking reliable rotary position sensors in modern electronic designs.
Images for reference

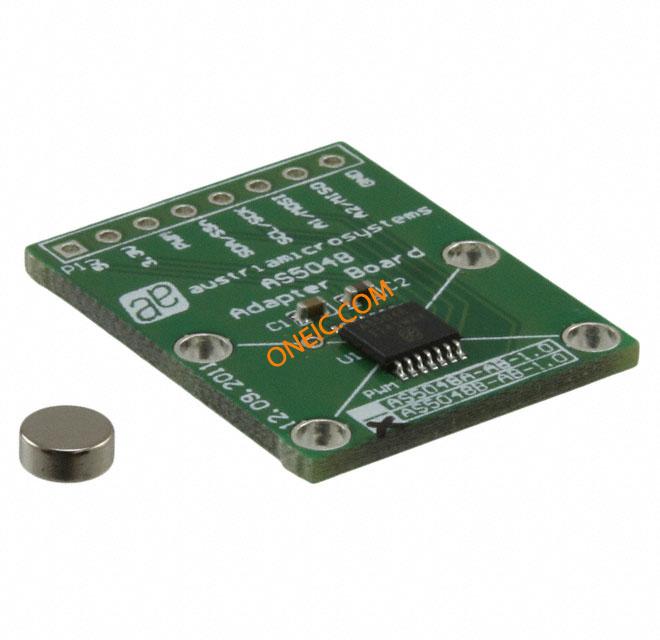

AS5048B-AB-1.0
AS5048B-AB-1.0
14-TSSOP
