AS5048A
Magnetic sensor development and evaluation tools
Manufacturer： ['ams', 'ams-ag']
series introduction
The AS5048A Series is a state-of-the-art magnetic rotary position sensor designed for high-precision applications in industrial and automotive environments. This series stands out due to its innovative contactless measurement technology, which utilizes a magnetic field to determine angular position with remarkable accuracy. The AS5048A features a resolution of up to 14 bits, allowing for precise position feedback essential for applications in robotics, motor control, and automation systems.
One of the key features of the AS5048A is its integrated Hall-effect sensing technology, which provides robust performance even in challenging conditions, such as extreme temperatures and vibration. The sensor operates within a wide temperature range from -40°C to +125°C, ensuring reliable functionality in both harsh industrial settings and sensitive automotive applications. The AS5048A also boasts an impressive supply voltage range of 3.3V to 5.5V, making it versatile enough to integrate into various electronic systems while maintaining low power consumption.
The design characteristics of the AS5048A focus on user-friendliness and flexibility. It supports both SPI and PWM output interfaces, allowing seamless integration with a variety of microcontrollers and digital signal processors. Additionally, the device features programmable settings for zero position, resolution, and sensitivity, enabling engineers to tailor the sensor's performance to their specific application needs. This adaptability makes the AS5048A suitable for a wide range of use cases, from precise angle measurement in servo motors to position feedback in linear actuators.
Typical applications for the AS5048A Series include robotics, where accurate position sensing is crucial for movement control, as well as automotive systems such as steering angle sensing and pedal position detection. Its reliability and precision make it an ideal choice for industrial automation, helping improve efficiency and safety in manufacturing processes. Overall, the AS5048A Series represents a significant advancement in magnetic position sensing technology, leveraging its advanced features and robust design to meet the demanding needs of modern electronic applications.
Images for reference

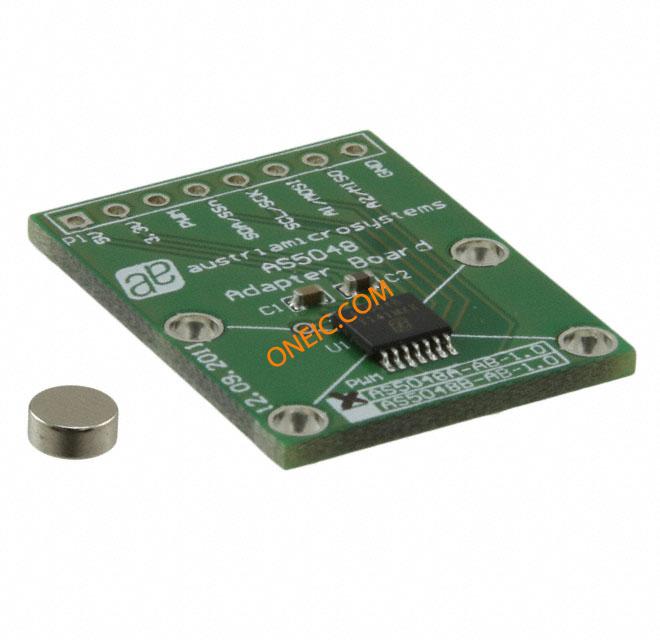

AS5048A-AB-1.0
AS5048A-AB-1.0
14-TSSOP
