AS1329C
TSOT23-6 IC for voltage regulation and evaluation
Manufacturer： ['ams', 'austriamicrosystems']
series introduction
The AS1329C Series is a family of highly efficient, low-dropout (LDO) linear voltage regulators designed to deliver stable and precise output voltages in compact packages. Engineered for applications requiring low quiescent current and high performance, the AS1329C Series is ideal for battery-powered devices, portable electronics, and any application where power efficiency is paramount. With a wide input voltage range of 1.5V to 5.5V, these regulators provide versatility across various electronic systems, ensuring seamless integration into both consumer and industrial designs.
One of the standout features of the AS1329C Series is its ultra-low dropout voltage, which allows the device to maintain regulation even when the input voltage is very close to the output voltage. This characteristic is particularly beneficial in systems with tight voltage margins, where efficiency and performance are critical. Additionally, the series includes features such as short-circuit protection, thermal shutdown, and an output voltage accuracy of ±2%, further enhancing reliability and operational safety in demanding environments.
The design of the AS1329C Series emphasizes minimal footprint without sacrificing performance. Available in compact packages, including SOT23 and DFN, these regulators are perfect for space-constrained applications such as smartphones, tablets, wearables, and IoT devices. Their small size and efficient thermal performance make them suitable for high-density circuit boards and applications where heat dissipation is a concern.
In terms of typical applications, the AS1329C Series is well-suited for powering RF circuits, sensors, and microcontrollers, where a stable voltage supply is essential for optimal performance. Their low noise output and high power supply rejection ratio (PSRR) ensure that sensitive components are protected from voltage fluctuations, making them a preferred choice in audio devices and precision instrumentation.
Overall, the AS1329C Series stands out for its combination of low power consumption, compact design, and robust performance, making it an excellent choice for modern electronic applications that demand reliability and efficiency.
Images for reference

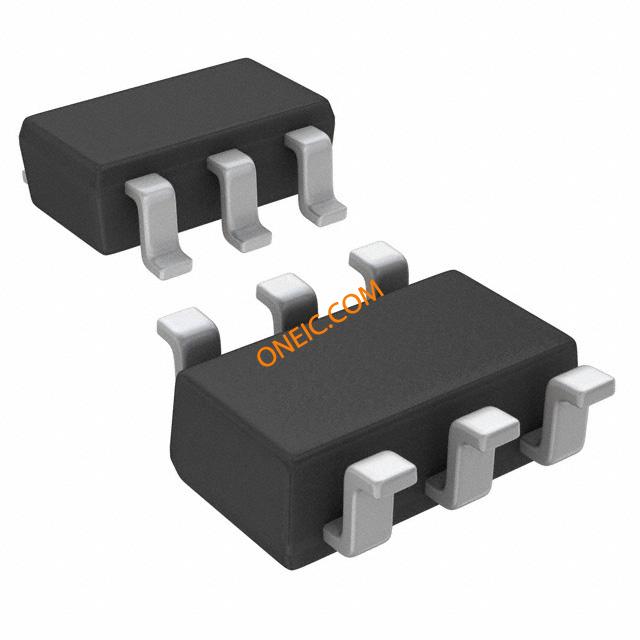

AS1329C-BTTT
Image Preview
