AS1130
LED drivers for lighting and display applications
Manufacturer： ['ams', 'akros-silicon', 'ams-ag']
series introduction
The AS1130 Series is an advanced line of addressable RGB LED drivers designed to meet the growing demand for sophisticated lighting solutions in various applications, including decorative lighting, automotive interior lighting, and display technologies. Renowned for their versatility and ease of integration, the AS1130 Series provides seamless control of RGB LEDs, enabling the creation of vibrant and dynamic lighting effects that enhance user experience.
One of the key features of the AS1130 Series is its ability to manage up to 256 individual RGB LEDs through a simple one-wire interface. This allows for an impressive level of customization and scalability, making it suitable for both small-scale projects and large installations. Additionally, the AS1130 incorporates advanced PWM (Pulse Width Modulation) control, which enables precise brightness and color mixing for each LED, resulting in smooth transitions and a rich color palette.
The design characteristics of the AS1130 Series are tailored for efficiency and simplicity. With a compact footprint, these drivers are an excellent choice for space-constrained applications. The integrated architecture minimizes the need for external components, reducing assembly complexity and the overall bill of materials. Furthermore, the AS1130 supports daisy-chaining, allowing multiple devices to be connected in series, which simplifies wiring and reduces design time.
Suitable use cases for the AS1130 Series span a wide range of industries. In the consumer electronics sector, they are often employed in smart home lighting systems, LED strip lights, and gaming peripherals, where customizable lighting can significantly enhance aesthetics and user engagement. In automotive applications, the AS1130 is utilized for ambient lighting, instrument cluster backlighting, and other interior light effects, contributing to a modern and appealing cabin atmosphere.
Overall, the AS1130 Series stands out as a reliable solution for designers and engineers seeking to implement sophisticated LED lighting solutions. With its robust feature set, ease of use, and adaptability, it paves the way for innovative lighting designs that captivate and inspire across various applications and industries.
Images for reference

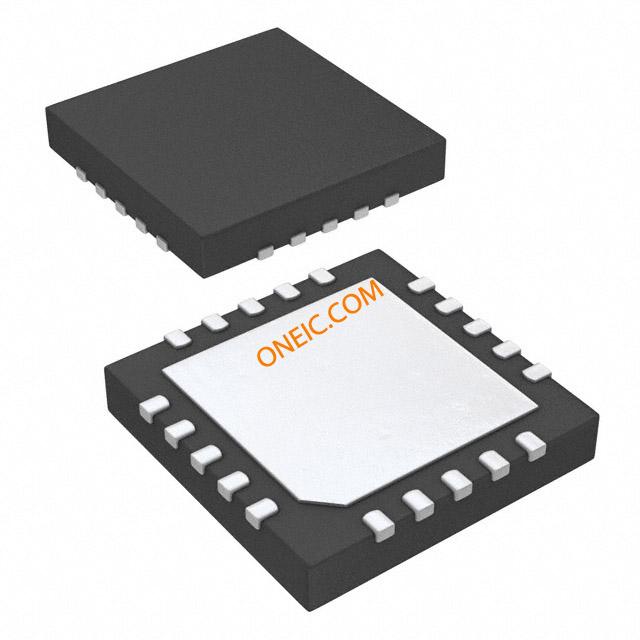

20-QFN (5x5)
28-SOIC
20-WLCSP, CB-20-6
