APT70
IGBT transistors for power applications
Manufacturer： microsemi
series introduction
The APT70 Series represents a cutting-edge line of power transistors designed to meet the demands of high-performance applications across various industries. Engineered with advanced technology, these transistors deliver exceptional efficiency, thermal performance, and reliability, making them a preferred choice for power management solutions in both industrial and consumer electronics.
One of the standout features of the APT70 Series is its high current handling capability, which allows for robust performance in power conversion applications. With a maximum continuous current rating of 70A, these transistors can efficiently drive various load types, from motor drives to switching power supplies. The series is built using state-of-the-art semiconductor materials, ensuring low on-resistance and minimal power losses during operation. This results in lower heat generation, enabling the implementation of compact thermal management solutions that are crucial in high-density applications.
The design characteristics of the APT70 Series focus on versatility and ease of integration. Featuring industry-standard packages, these transistors can be seamlessly incorporated into a wide range of circuit designs. Their high switching speeds make them particularly suitable for applications requiring fast response times, such as inverters, DC-DC converters, and pulse-width modulation (PWM) systems. Additionally, the APT70 transistors are tested under rigorous conditions to ensure they can withstand harsh environments, making them ideal for automotive and industrial automation applications.
Typical applications of the APT70 Series span a broad spectrum, including electric vehicles, renewable energy systems, and industrial machinery. In electric vehicles, these transistors play a crucial role in battery management systems and electric motor control, contributing to enhanced energy efficiency and performance. In renewable energy, they are utilized in solar inverters and wind turbine systems, helping to optimize energy conversion and storage. Overall, the APT70 Series sets a benchmark for power transistors, offering a reliable and efficient solution for modern electronic designs requiring superior performance and longevity.
Images for reference
TO-247-3

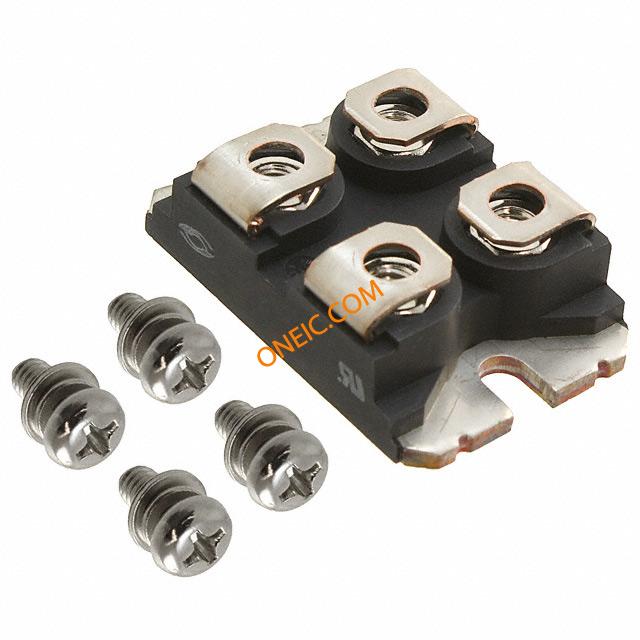

SOT-227-4
TO-264 PKG
