AP3407

1.2A DC - DC buck converters for voltage regulation

Manufacturer: ['allpower', 'diodes', 'diodeszetex']

series introduction

The AP3407 Series is a highly integrated synchronous buck converter designed for efficient power management in a wide array of applications. This series stands out for its remarkable features, including a high input voltage range, low quiescent current, and excellent load transient response, making it an ideal choice for both portable and stationary electronic devices. With its ability to deliver up to 3A of continuous output current, the AP3407 Series effectively balances performance with efficiency, ensuring minimal energy loss during operation.

One of the key design characteristics of the AP3407 Series is its use of a synchronous rectification technique, which significantly enhances overall efficiency by reducing conduction losses. The converter operates with a wide input voltage range, typically from 4.5V to 28V, and provides adjustable output voltages, making it versatile for various applications that require different voltage levels. The built-in soft-start function minimizes inrush current, protecting sensitive components during power-up, while the integrated overcurrent and thermal protection features ensure robustness in real-world operating conditions.

The AP3407 Series is particularly suitable for use in battery-operated devices, where efficient power conversion is critical to prolonging battery life. Typical applications include portable consumer electronics such as smartphones and tablets, as well as industrial automation systems that demand reliable power supply solutions. Additionally, the series is well-suited for powering RF amplifiers and other high-frequency circuits, thanks to its low output ripple voltage and fast transient response.

In summary, the AP3407 Series combines high performance, efficiency, and a compact footprint, making it a preferred choice for engineers and designers looking to optimize power management in a variety of electronic systems. Its extensive application range, from consumer electronics to industrial equipment, underscores its versatility and dependability in modern electronic design.

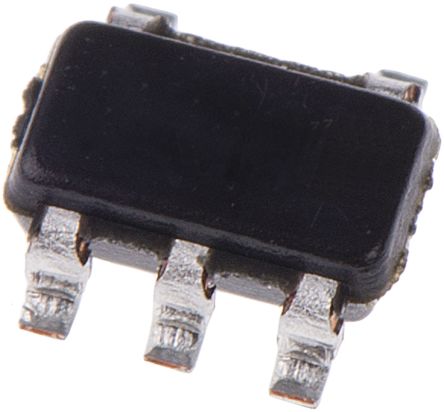

Images for reference

Image Preview

Image Preview

Image Preview

Image Preview

Image Preview

Image Preview

related Documents

Datasheets

Partlist

AP3407
AP3407AKTR-G1
AP3407KTR-G1
