AP2204R
LDO voltage regulators in SOT-89 package
Manufacturer： ['diodes', 'diodeszetex']
series introduction
The AP2204R Series is a family of highly efficient, low-dropout linear voltage regulators (LDOs) designed to deliver a stable output voltage with minimal power loss. These devices stand out for their remarkable performance characteristics, including a low dropout voltage, high output current capability, and low quiescent current, making them ideal for battery-powered applications and other energy-sensitive environments. With a wide input voltage range, the AP2204R Series can accommodate various power supply sources, ensuring versatility across multiple applications.
One of the key features of the AP2204R Series is its ability to maintain a consistent output voltage with a dropout voltage as low as 200 mV at full load. This characteristic allows for improved efficiency, especially in applications where the input voltage is only slightly higher than the desired output. Furthermore, the series is designed with an integrated thermal shutdown and short-circuit protection to enhance reliability and safeguard sensitive components from damage in adverse operating conditions.
The design of the AP2204R Series emphasizes compactness and simplicity, featuring a small footprint that makes it suitable for integration into space-constrained designs. The LDOs are available in various output voltage options, which can be easily configured using external resistors, allowing engineers to tailor the voltage to their specific needs. This adaptability makes the AP2204R Series well-suited for a broad range of applications, including portable consumer electronics, telecommunications equipment, and industrial automation systems.
In addition to consumer devices, the AP2204R Series is commonly employed in automotive electronics, where stable voltage regulation is critical for the performance of components such as infotainment systems, sensors, and control modules. The low noise output of these LDOs ensures that sensitive analog circuits operate without interference, further expanding their utility in precision applications. Overall, the AP2204R Series offers a reliable, efficient, and flexible solution for designers looking to enhance power management in their electronic systems.
Images for reference

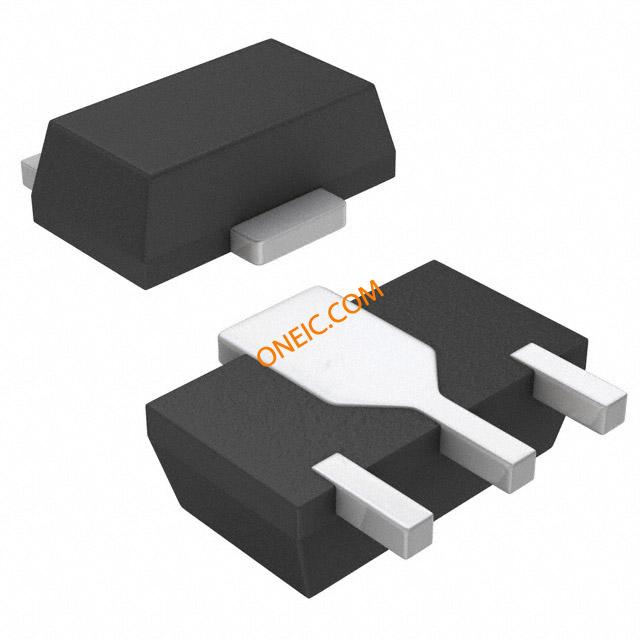

TO-243AA
