AP2120
LDO voltage regulators for various output voltages
Manufacturer： ['diodes', 'diodeszetex']
series introduction
The AP2120 Series is a family of high-performance low-dropout (LDO) voltage regulators designed to deliver stable and efficient power management solutions across a wide range of applications. These regulators are engineered to provide a consistent output voltage with minimal dropout voltage, ensuring reliable operation even under varying load conditions. With a maximum output current of 1A, the AP2120 Series is ideal for powering sensitive analog and digital circuits, offering a robust solution for applications that demand precision and efficiency.
One of the key features of the AP2120 Series is its low dropout voltage, which typically measures around 300mV at full load. This characteristic enables the regulators to operate effectively with minimal input-output voltage differential, making them suitable for battery-operated devices where maximizing battery life is critical. Additionally, the AP2120 Series boasts a wide input voltage range of 2.5V to 6.5V, allowing for flexibility in various power supply configurations and compatibility with diverse system requirements.
The design characteristics of the AP2120 Series prioritize thermal performance and stability. Integrated thermal shutdown and current limit protection mechanisms ensure that the device operates safely under adverse conditions, thus enhancing the reliability of the overall circuit. The series also features low output noise and excellent transient response, critical for sensitive applications such as RF communication devices, audio equipment, and precision instrumentation.
The AP2120 Series is particularly well-suited for applications in consumer electronics, automotive systems, and industrial automation. Its compact package options facilitate integration into space-constrained designs, making it a preferred choice for portable devices, wearable technology, and IoT applications. Furthermore, the series supports a broad array of output voltage options, catering to various design specifications and user needs.
In summary, the AP2120 Series stands out as a versatile and efficient solution for modern power management challenges, providing designers with the reliability, performance, and flexibility necessary for today's sophisticated electronic systems.
Images for reference

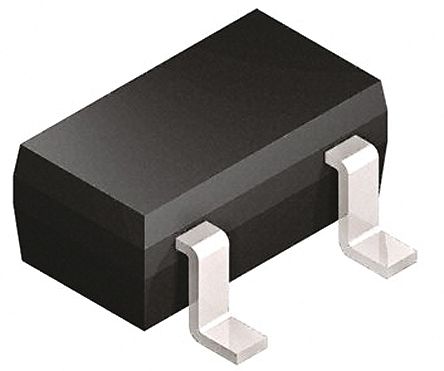

SOT23
