AP1538SG-13

Adjustable 3A buck voltage regulators for DC-DC conversion

Manufacturer: diodes

series introduction

# AP1538SG - 13 Product Series Introduction

## 1. Overview
The AP1538SG - 13 product series represents a cutting - edge solution in the field of power management integrated circuits. These devices are designed to meet the diverse and demanding requirements of modern electronic systems, offering high - performance, reliability, and efficiency in a compact form factor.

## 2. Key Features

### 2.1 High Efficiency
The AP1538SG - 13 series is engineered with advanced power conversion technology, achieving high conversion efficiency. This means that a large proportion of the input power is effectively converted into the desired output power, minimizing power losses in the form of heat. High efficiency not only reduces energy consumption but also helps in extending the battery life of portable devices, making it an ideal choice for battery - powered applications such as smartphones, tablets, and wearable devices.

### 2.2 Wide Input Voltage Range
These integrated circuits can operate over a wide input voltage range. This flexibility allows them to be used in various power supply scenarios, whether it is a low - voltage battery source or a higher - voltage power adapter. For example, in automotive applications, where the voltage can vary significantly depending on the vehicle's operating conditions, the wide input voltage range of the AP1538SG - 13 series ensures stable operation.

### 2.3 Adjustable Output Voltage
The output voltage of the AP1538SG - 13 can be easily adjusted according to the specific requirements of the application. This feature provides designers with the flexibility to customize the power supply for different components within a system. For instance, different microcontrollers or memory chips may require different supply voltages, and the adjustable output voltage of this series allows for seamless integration.

### 2.4 Low Quiescent Current
In standby or low - power modes, the AP1538SG - 13 series consumes very low quiescent current. This is crucial for applications where power conservation is a top priority, such as in IoT devices that may spend long periods in a low - power state waiting for a trigger event. The low quiescent current helps to minimize the overall power consumption of the system, thereby increasing the device's operational time between battery charges.

### 2.5 Over - Current and Over - Temperature Protection
To ensure the safety and reliability of the system, the AP1538SG - 13 series is equipped with over - current and over - temperature protection mechanisms. In case of a short - circuit or excessive load current, the over - current protection will automatically limit the output current to prevent damage to the device and other components in the system. Similarly, if the temperature of the device rises above a certain threshold, the over - temperature protection will kick in to reduce the power dissipation and prevent overheating.

## 3. Applications

### 3.1 Consumer Electronics
In consumer electronics such as smartphones, tablets, and smartwatches, the AP1538SG - 13 series can be used to power various components, including the processor, display, and sensors. Its high efficiency and adjustable output voltage make it suitable for optimizing the power consumption of these devices, while its small form factor allows for easy integration into the compact designs of modern consumer electronics.

### 3.2 Automotive Electronics
Automotive applications require components that can withstand harsh operating conditions and provide reliable power. The AP1538SG - 13 series, with its wide input voltage range and robust protection features, can be used in automotive infotainment systems, lighting systems, and engine control units. It ensures stable power supply to these critical components, even in the presence of voltage fluctuations and temperature variations.

### 3.3 Industrial Automation
In industrial automation systems, where reliability and efficiency are of utmost importance, the AP15

Images for reference

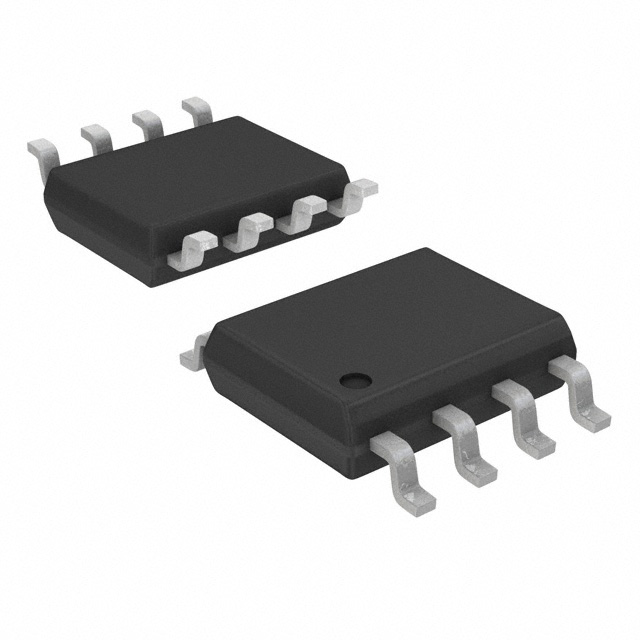

8-SOIC
