ADXL362
Low-power 3-axis digital accelerometers in compact LGA-16 package
Manufacturer： analog-devices
series introduction
# ADXL362 Product Series Introduction
## 1. Overview
The ADXL362 is a highly advanced and versatile product series developed by Analog Devices. It belongs to the family of low - power, 3 - axis MEMS (Micro - Electro - Mechanical Systems) accelerometers. These accelerometers are designed to provide accurate and reliable motion sensing capabilities in a wide range of applications, from industrial monitoring to consumer electronics.
## 2. Key Features
### 2.1 Low Power Consumption
One of the most significant features of the ADXL362 series is its extremely low power consumption. In measurement mode, it can operate with a very low current draw, typically in the microampere range. This makes it ideal for battery - powered applications where long battery life is crucial. For example, in wearable devices such as fitness trackers, the low power consumption ensures that the device can run for extended periods without frequent recharging.
### 2.2 High Resolution
The ADXL362 offers high - resolution acceleration measurements. It can detect very small changes in acceleration, providing precise data for applications that require accurate motion sensing. This high resolution is beneficial in applications like vibration monitoring in industrial machinery, where even minor vibrations can indicate potential mechanical issues.
### 2.3 Wide Measurement Range
It has a wide measurement range, which can be configured to suit different application requirements. The accelerometer can measure accelerations from ±2 g to ±200 g, allowing it to be used in a variety of scenarios, from gentle motion detection in consumer products to high - impact applications in automotive safety systems.
### 2.4 Integrated Temperature Sensor
The ADXL362 comes with an integrated temperature sensor. This sensor provides temperature data along with the acceleration measurements, which can be useful for compensating for temperature - related effects on the accelerometer's performance. In addition, the temperature data can be used in applications where environmental temperature monitoring is also required, such as in industrial process control.
### 2.5 Built - in FIFO
A First - In - First - Out (FIFO) buffer is integrated into the ADXL362. This buffer can store a certain number of acceleration samples, reducing the need for the host processor to continuously read data from the accelerometer. It helps in reducing the overall system power consumption and also allows for efficient data handling, especially in applications where data logging or burst data collection is required.
## 3. Functional Block Diagram and Working Principle
### 3.1 MEMS Sensing Element
The heart of the ADXL362 is the MEMS sensing element. It consists of a micro - machined structure that can detect changes in acceleration. When the device is subjected to acceleration, the MEMS structure moves, and this movement is converted into an electrical signal through capacitive sensing.
### 3.2 Signal Conditioning and Processing
The electrical signal from the MEMS sensing element is then sent to the signal conditioning and processing circuitry. This circuitry amplifies, filters, and digitizes the signal to provide accurate acceleration data. The integrated temperature sensor also provides temperature data, which is processed along with the acceleration data.
### 3.3 Communication Interface
The ADXL362 supports both SPI (Serial Peripheral Interface) and I²C (Inter - Integrated Circuit) communication interfaces. These interfaces allow the accelerometer to communicate with the host processor, enabling easy integration into different systems.
## 4. Applications
### 4.1 Industrial Applications
- **Vibration Monitoring**: In industrial machinery, the ADXL362 can be used to monitor vibrations. By detecting abnormal vibrations, it can help in predicting mechanical failures, reducing downtime, and improving overall equipment reliability.
- **Structural Health Monitoring**: For bridges, buildings, and other large structures, the accelerometer can measure the dynamic response of the
Images for reference

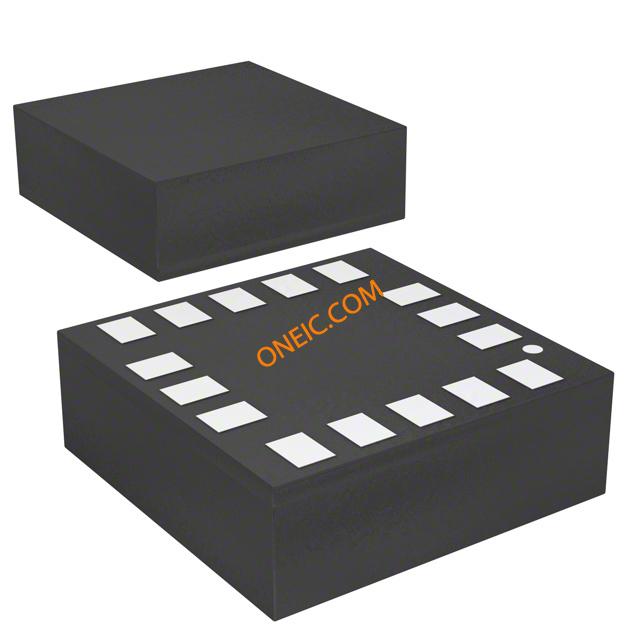

16-LGA
