# ADV7612BSWZ Product Series Introduction

## 1. Overview
The ADV7612BSWZ is a high - performance product series developed by Analog Devices, a leading company in the semiconductor industry. This series is specifically designed for applications that demand high - quality video signal processing and transmission, offering a comprehensive solution for various multimedia and display systems.

## 2. Key Features

### 2.1 Video Input Capabilities
- **Multiple Input Formats**: The ADV7612BSWZ supports a wide range of video input formats, including HDMI 1.4a, DisplayPort, and DVI. This flexibility allows it to interface with a variety of video sources such as Blu - ray players, gaming consoles, and computers.
- **High - Resolution Support**: It can handle high - resolution video signals up to 4K (3840×2160) at 60Hz, ensuring sharp and clear images for modern high - definition displays. This makes it suitable for applications in home theaters, digital signage, and professional video monitoring.

### 2.2 Video Processing
- **Scaling and Format Conversion**: The device is equipped with advanced scaling algorithms that can adjust the input video resolution to match the output display requirements. It also supports format conversion between different video standards, enabling seamless integration between various devices.
- **Color Space Conversion**: It can perform accurate color space conversion, ensuring that the colors in the video are reproduced correctly on the display. This is crucial for applications where color accuracy is of utmost importance, such as graphic design and video editing.

### 2.3 Audio Processing
- **Audio Decoding**: The ADV7612BSWZ can decode a variety of audio formats, including Dolby Digital, DTS, and LPCM. This allows it to extract high - quality audio from the input video stream and send it to the appropriate audio output devices.
- **Audio Synchronization**: It ensures precise audio - video synchronization, eliminating any lip - sync issues that may occur during video playback. This is essential for a seamless viewing experience, especially in applications like home theaters and live event broadcasting.

### 2.4 Output Interfaces
- **HDMI Output**: The device features an HDMI output interface, which is widely used in modern display devices. The HDMI output supports high - speed data transfer and can carry both video and audio signals, providing a convenient and efficient way to connect to displays.
- **Audio Output Options**: In addition to HDMI, it also offers separate audio output options such as S/PDIF and analog audio outputs. This allows users to connect to different types of audio systems, depending on their specific requirements.

### 2.5 Low Power Consumption
The ADV7612BSWZ is designed with power - saving features, making it suitable for applications where energy efficiency is a concern. It can operate in low - power modes without sacrificing performance, reducing the overall power consumption of the system.

## 3. Applications

### 3.1 Home Theater Systems
In home theater setups, the ADV7612BSWZ can be used to receive video and audio signals from various sources such as Blu - ray players, cable boxes, and gaming consoles. It processes the signals and sends them to the TV or projector, providing a high - quality viewing and listening experience.

### 3.2 Digital Signage
For digital signage applications, the device can handle high - resolution video content and ensure that it is displayed correctly on large - format displays. Its ability to support multiple input formats allows it to connect to different types of media players and content sources.

### 3.3 Professional Video Monitoring
In professional video monitoring systems, the ADV7612BSWZ can be used to receive and process video signals from security cameras, surveillance systems, and

Images for reference

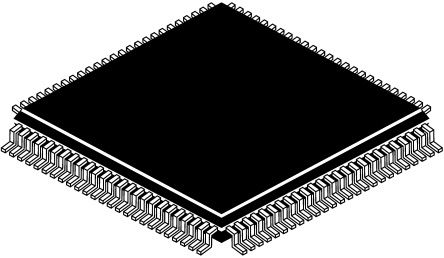

128-TQFP
