ADUM5210
2 - channel digital isolators with DC - DC converter
Manufacturer： analog-devices
series introduction
The ADUM5210 Series is a family of high-performance digital isolators designed to provide robust isolation in a variety of demanding applications. Utilizing advanced isoPower® technology, the ADUM5210 Series integrates isolation and power delivery in a single device, offering a compact and efficient solution for high-speed data communication while ensuring safety and reliability. This series operates with a data rate of up to 25 Mbps, making it suitable for applications requiring fast and reliable data transfer.
One of the key features of the ADUM5210 Series is its low power consumption, which is crucial for battery-operated devices and energy-sensitive applications. The series is designed to operate across a wide supply voltage range, typically from 3.0V to 5.5V, providing flexibility for integration into various system designs. The devices employ a unique capacitive isolation technology that maintains excellent performance over time, with a minimum isolation voltage rating of 5 kV RMS, ensuring robust protection against high-voltage transients.
The design characteristics of the ADUM5210 Series are tailored for ease of integration and minimal footprint. These isolators are available in multiple package options, including surface mount configurations that facilitate automated assembly processes. Their small size and high integration level reduce the need for additional components, simplifying circuit design and enhancing reliability.
The ADUM5210 Series is particularly well-suited for use in industrial control systems, medical devices, and communication interfaces, where maintaining data integrity and isolation is paramount. Typical applications include data acquisition systems, sensor interfaces, and motor control systems, where the isolation helps prevent ground loops and protects sensitive components from high-voltage spikes.
In summary, the ADUM5210 Series stands out as a versatile solution for digital isolation, combining high performance and compact design, making it an ideal choice for a wide array of applications across multiple industries. Its innovative features and reliability ensure that it meets the stringent requirements of modern electronic systems.
Images for reference

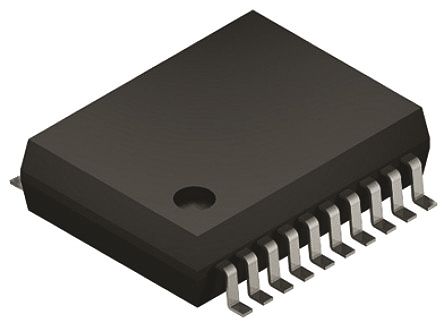

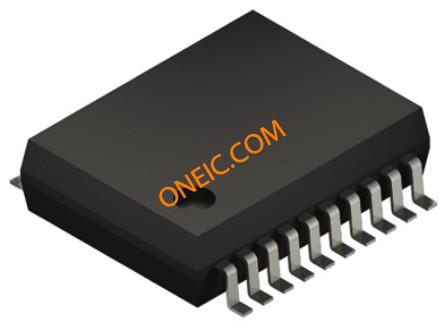

20-SSOP
Image Preview
Image Preview
