ADSP-BF547
16 - bit DSPs for high - performance applications
Manufacturer： analog-devices
series introduction
The ADSP-BF547 Series is an advanced family of digital signal processors (DSPs) that combines high performance, low power consumption, and sophisticated processing capabilities tailored for embedded applications. Built on the Blackfin architecture, this series is specifically designed to handle complex signal processing tasks efficiently, making it an ideal choice for a wide range of applications in various industries, including telecommunications, automotive, and consumer electronics.
One of the key features of the ADSP-BF547 Series is its dual-core architecture, which integrates a high-performance DSP core with a separate microcontroller core. This unique design allows for concurrent processing of audio, video, and other signal data streams, significantly enhancing the throughput and responsiveness of applications. The processors are equipped with a rich set of peripherals, including serial interfaces, timers, and analog-to-digital converters (ADCs), providing developers with the flexibility needed to interface with a variety of sensors and other components.
The ADSP-BF547 processors operate at clock speeds of up to 600 MHz, delivering exceptional computational power while maintaining low power consumption. This efficiency is crucial for battery-operated devices and portable applications, ensuring extended operational life without compromising performance. Additionally, the series supports a wide range of memory options, including external memory interfaces, which allows for seamless integration into diverse system architectures.
In terms of design characteristics, the ADSP-BF547 Series features a compact package and a highly integrated design, which minimizes the need for external components and reduces the overall footprint of the system. This compactness makes it particularly well-suited for space-constrained environments, such as smartphones, medical devices, and industrial automation systems.
Typical applications for the ADSP-BF547 Series include audio and video processing, motor control, and telecommunications systems. Its versatility and robust performance enable engineers to develop innovative solutions ranging from digital audio effects and high-definition video encoding to advanced control algorithms in automotive systems. Overall, the ADSP-BF547 Series stands out as a powerful and flexible solution for embedded signal processing, providing the necessary tools for engineers to create cutting-edge applications across various industries.

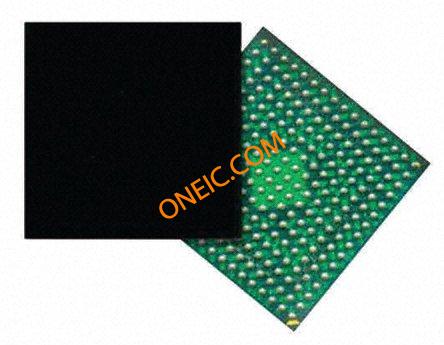

Images for reference

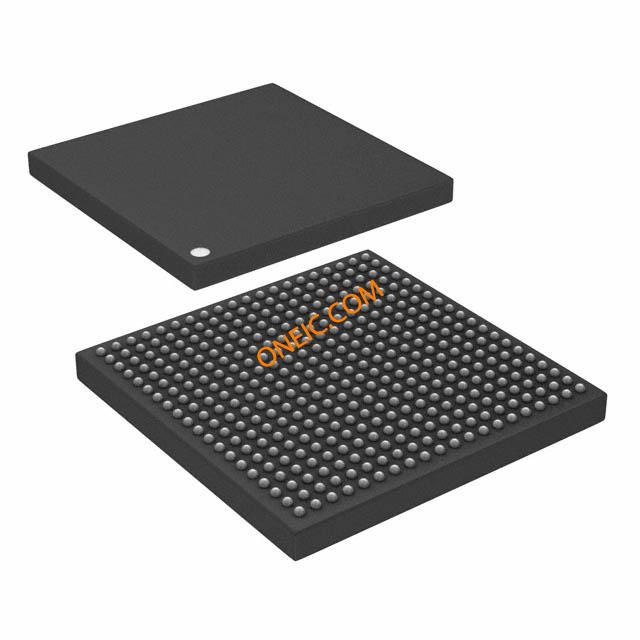

BC-400-1
Image Preview
Image Preview
