ADSP-BF524BBCZ-4A

Low-power 32-bit DSP controllers with advanced peripherals

Manufacturer: analog-devices

series introduction

# Introduction to the ADSP - BF524BBCZ - 4A Product Series

## 1. Overview
The ADSP - BF524BBCZ - 4A belongs to Analog Devices' Blackfin family of digital signal processors (DSPs). These processors are designed to offer a high - performance, cost - effective solution for a wide range of applications that require both digital signal processing capabilities and general - purpose computing. The ADSP - BF524BBCZ - 4A, in particular, is engineered to meet the demanding requirements of modern embedded systems, providing a balance between processing power, memory, and power consumption.

## 2. Key Features

### 2.1 Processing Power
- **Core Architecture**: It is based on the Blackfin architecture, which combines a 32 - bit RISC instruction set with a 16 - bit fixed - point DSP instruction set. This unique combination allows the processor to handle both control - intensive tasks and complex signal processing algorithms efficiently.
- **Clock Speed**: The "4A" in the part number indicates a specific clock speed. With a relatively high clock rate, the ADSP - BF524BBCZ - 4A can execute instructions at a fast pace, enabling real - time processing of data. This is crucial for applications such as audio and video processing, where timely data handling is essential.

### 2.2 Memory
- **Internal Memory**: The processor comes with a significant amount of on - chip memory. It includes both program memory and data memory, which reduces the need for external memory access in many cases. This not only speeds up the execution of programs but also simplifies the overall system design.
- **Memory Organization**: The memory is organized in a way that allows for efficient data transfer and storage. It supports different memory access modes, enabling the processor to handle various data types and sizes effectively.

### 2.3 Peripherals
- **Communication Interfaces**: The ADSP - BF524BBCZ - 4A is equipped with a variety of communication interfaces, such as SPI (Serial Peripheral Interface), I²C (Inter - Integrated Circuit), and UART (Universal Asynchronous Receiver - Transmitter). These interfaces facilitate seamless communication with other devices, such as sensors, actuators, and external memory modules.
- **DMA Controller**: A Direct Memory Access (DMA) controller is integrated into the processor. The DMA controller can transfer data between memory and peripherals without the intervention of the CPU, freeing up the CPU to perform other tasks. This improves the overall system performance, especially when dealing with large amounts of data.

### 2.4 Power Management
- **Low - Power Modes**: To meet the requirements of battery - powered or energy - efficient applications, the ADSP - BF524BBCZ - 4A offers multiple low - power modes. These modes allow the processor to reduce its power consumption when idle or during periods of low activity, extending the battery life of portable devices.
- **Dynamic Power Management**: The processor also supports dynamic power management techniques, which adjust the power consumption based on the workload. This ensures that the processor consumes only the necessary amount of power at any given time.

## 3. Applications

### 3.1 Audio Processing
- **Audio Codecs**: The high - performance DSP capabilities of the ADSP - BF524BBCZ - 4A make it suitable for implementing audio codecs. It can handle tasks such as encoding and decoding audio signals, applying audio effects, and performing audio mixing.
- **Audio Recording and Playback**: In audio recording and playback systems, the processor can process the audio data in real - time, ensuring high - quality sound reproduction. It can also interface with audio input and output devices, such as microphones and speakers.

### 3.2 Industrial Control

Images for reference

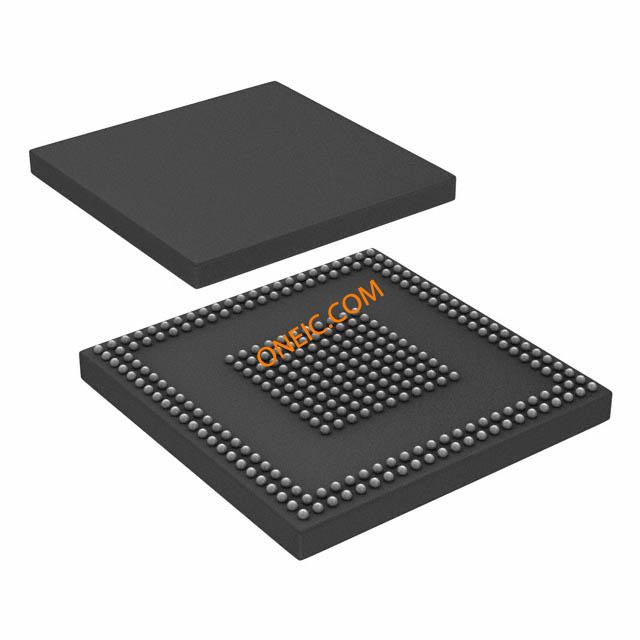

BC-289-2
