ADSP-21469BBCZ-3
High-performance 32-bit floating-point digital signal processors
Manufacturer： analog-devices
series introduction
# ADSP - 21469BBCZ - 3 Product Series Introduction
## 1. Overview
The ADSP - 21469BBCZ - 3 belongs to a high - performance product series within Analog Devices' line of digital signal processors (DSPs). These DSPs are engineered to meet the demanding requirements of a wide range of applications, from industrial control systems to audio processing and telecommunications. The "ADSP - 21469" is the core model number, while "BBCZ" represents a specific package type and "3" might denote a particular speed grade or revision level.
## 2. Key Features
### 2.1 Processing Power
- **High - Speed Core**: The ADSP - 21469BBCZ - 3 is equipped with a powerful SHARC+ core. This core can operate at high clock speeds, enabling it to execute complex digital signal processing algorithms with remarkable efficiency. It can handle multiple instructions per clock cycle, which significantly boosts the overall processing throughput.
- **Floating - Point and Fixed - Point Capabilities**: It supports both floating - point and fixed - point arithmetic operations. Floating - point operations are essential for applications that require high precision, such as audio and video processing, where accurate representation of data is crucial. Fixed - point operations, on the other hand, are more memory - and power - efficient, making them suitable for resource - constrained applications.
### 2.2 Memory Architecture
- **On - Chip Memory**: The device features a substantial amount of on - chip memory, including program memory and data memory. This on - chip memory reduces the need for external memory access, thereby minimizing latency and improving the overall performance of the system. The memory is organized in a way that allows for efficient data transfer and storage, enabling the DSP to quickly access the data it needs to perform calculations.
- **Memory Interfaces**: It also provides various memory interfaces, such as external memory interfaces (EMIF). These interfaces allow the DSP to connect to external memory devices, such as SDRAM or flash memory, to expand the available memory space when required. This flexibility makes the ADSP - 21469BBCZ - 3 suitable for applications with different memory requirements.
### 2.3 Peripherals
- **Communication Interfaces**: The product series offers a rich set of communication interfaces, including serial ports (UARTs), SPI (Serial Peripheral Interface), and I2C (Inter - Integrated Circuit). These interfaces enable the DSP to communicate with other devices, such as sensors, actuators, and microcontrollers, facilitating seamless integration into larger systems.
- **DMA (Direct Memory Access) Controller**: The built - in DMA controller allows for high - speed data transfer between different memory locations and peripherals without the intervention of the CPU. This offloads the CPU from data transfer tasks, allowing it to focus on more critical processing operations, thus improving the overall system efficiency.
### 2.4 Power Management
- **Low - Power Modes**: The ADSP - 21469BBCZ - 3 is designed with power management in mind. It offers multiple low - power modes, such as sleep mode and standby mode. In these modes, the DSP can reduce its power consumption significantly while still maintaining essential functions or being able to quickly wake up when needed. This makes it suitable for battery - powered applications or applications where power consumption is a critical factor.
## 3. Applications
### 3.1 Audio Processing
- **Professional Audio Equipment**: In professional audio mixers, amplifiers, and audio effects processors, the ADSP - 21469BBCZ - 3 can handle real - time audio signal processing tasks, such as equalization, compression, and reverb. Its high - speed processing capabilities and floating - point support ensure
Images for reference

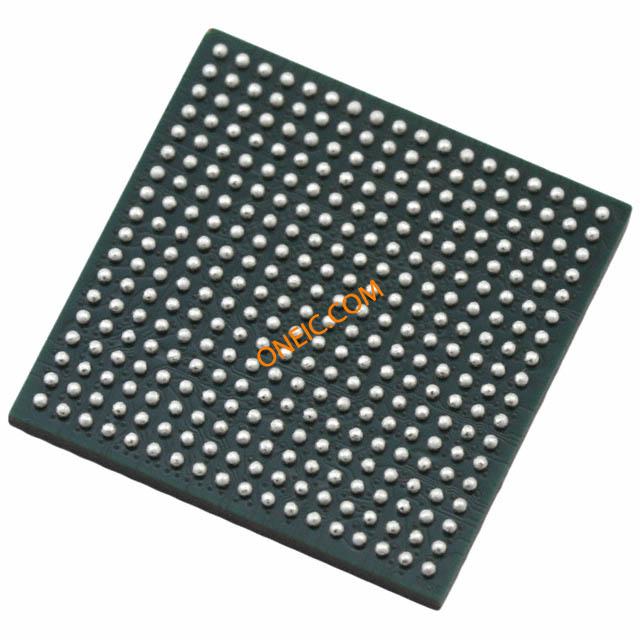

324-BGA, CSPBGA
Image Preview
