ADS1293
Evaluation module for ADS1293 AFE in ECG applications
Manufacturer： ['national-semiconductor', 'ti']
series introduction
The ADS1293 Series is a cutting-edge family of low-power, high-precision analog-to-digital converters (ADCs), specifically engineered for biopotential measurements in medical and wearable applications. This series is characterized by its exceptional performance, featuring a 24-bit resolution, which allows for highly accurate signal acquisition and processing. With sampling rates of up to 32 kSPS per channel, the ADS1293 ensures that even the most fleeting physiological signals can be captured with precision, making it an ideal choice for electrocardiogram (ECG) and electromyogram (EMG) monitoring.
One of the standout features of the ADS1293 Series is its integrated programmable gain amplifier (PGA), which enhances signal fidelity by allowing users to optimize the gain settings according to specific application requirements. The series also includes built-in lead-off detection, which is crucial for ensuring accurate measurements and patient safety, as it can identify when electrodes are not properly connected. Furthermore, the low-noise architecture of the ADS1293 minimizes interference, significantly improving the quality of the acquired signals, even in electrically noisy environments.
The design of the ADS1293 Series emphasizes compactness and efficiency, making it well-suited for portable and battery-operated devices. Its low power consumption, coupled with a flexible digital interface, facilitates seamless integration into existing systems. This makes the ADS1293 ideal for applications in mobile health monitoring, wearable fitness trackers, and telemedicine devices, where space and power constraints are critical considerations.
In addition to medical applications, the ADS1293 Series finds utility in various industrial and research contexts, such as biomedical research and human-computer interaction studies. By providing reliable and accurate biopotential data, the ADS1293 Series empowers developers to create innovative solutions that enhance health monitoring and diagnostics. Overall, the ADS1293 Series stands out as a versatile and high-performance ADC solution tailored for the demanding requirements of modern biopotential measurement applications.
Images for reference
28-WQFN,L28

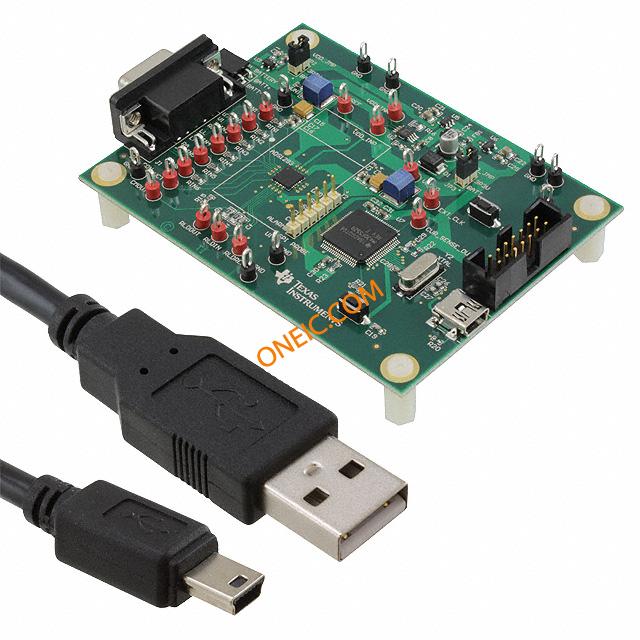

ADS1293EVM
