ADP223
Dual 300mA adjustable voltage regulators and eval boards
Manufacturer： analog-devices
series introduction
The ADP223 Series is a sophisticated line of high-performance low-dropout (LDO) voltage regulators, designed to deliver a stable output voltage with minimal input-output voltage differential. Engineered for efficiency and reliability, the ADP223 Series supports a wide input voltage range from 2.3V to 20V, making it highly versatile for various applications. With an output current capability of up to 1A, these regulators are ideal for powering delicate analog and digital circuits that require precise voltage levels.
A standout feature of the ADP223 Series is its ultra-low dropout voltage, which can be as low as 200 mV at maximum load, allowing for efficient operation even when the input voltage is close to the output voltage. This characteristic is particularly beneficial in battery-powered devices, where maintaining energy efficiency is crucial for extending operational life. Furthermore, the series incorporates advanced thermal protection and short-circuit protection mechanisms, ensuring that the device operates safely under a range of conditions.
The design of the ADP223 Series is optimized for low noise and high power supply rejection ratio (PSRR), making it suitable for sensitive applications where signal integrity is paramount. Its compact size and availability in multiple package options facilitate easy integration into space-constrained designs, including mobile devices, portable electronics, and automotive applications.
Typical use cases for the ADP223 Series include powering RF and analog circuits, microcontrollers, and sensor systems, where clean and stable power is essential for maintaining performance. Its application extends into consumer electronics, industrial automation, and telecommunications, where reliable voltage regulation is critical for device functionality. By offering a robust combination of efficiency, compactness, and protection features, the ADP223 Series stands out as a go-to solution for engineers seeking reliable power management solutions in a variety of demanding environments.
Images for reference

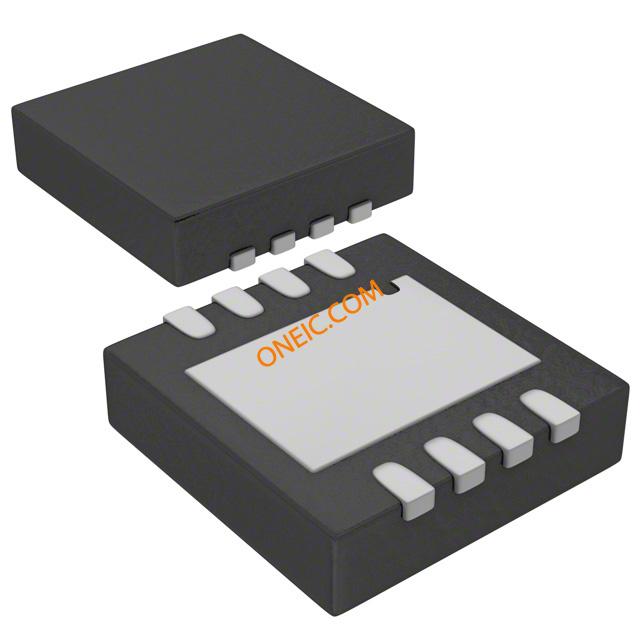

8LFCSP
Image Preview
Image Preview
