ADP172CB

series introduction

The ADP172CB Series is an advanced line of low-dropout (LDO) voltage regulators designed to deliver exceptional performance and efficiency in a variety of electronic applications. These regulators feature a high output current capability, along with an impressive low dropout voltage, making them ideal for systems where maintaining power efficiency is critical. The ADP172CB Series is optimized for low noise operation, which is particularly beneficial for sensitive analog and RF applications, ensuring that power supply noise does not adversely affect overall system performance.

One of the standout features of the ADP172CB Series is its wide input voltage range, allowing it to accommodate various power supply configurations while providing a stable output voltage. This versatility makes it suitable for applications ranging from battery-powered devices to automotive systems and industrial equipment. The series also includes built-in thermal protection and current limit features, enhancing device reliability and safety during operation under varying load conditions.

Design characteristics of the ADP172CB Series include a compact package size, which is crucial for modern electronics that prioritize space efficiency. Its integration into small form factor devices is seamless, making it an excellent choice for portable electronics, IoT devices, and other compact systems. The series also offers a range of output voltage options, allowing designers to select the most suitable configuration for their specific needs without compromising performance.

Typical applications for the ADP172CB Series are extensive and include powering digital circuits, microcontrollers, and sensors in consumer electronics, as well as serving as power supplies for RF transmitters and receivers. The low noise and high PSRR (Power Supply Rejection Ratio) of these regulators also make them highly effective for audio applications, where sound quality is paramount. In summary, the ADP172CB Series represents a robust solution for designers seeking efficient, reliable, and versatile voltage regulation across a wide spectrum of industries.

Images for reference

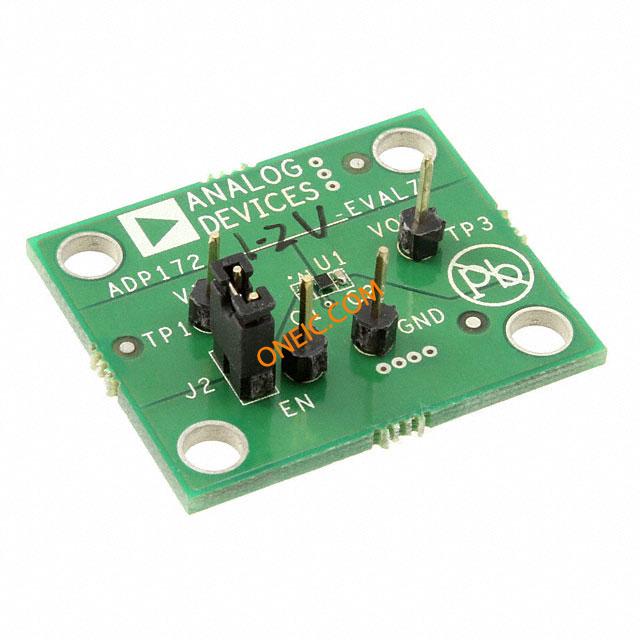

ADP172CB-1.2-EVALZ

ADP172CB-1.2-EVALZ

ADP172CB-1.5-EVALZ

Partlist
