ADIS16445AMLZ

Six-degree inertial sensor module with accelerometer and gyroscope

Manufacturer: analog-devices

series introduction

# ADIS16445AMLZ Product Series Introduction

## 1. Overview
The ADIS16445AMLZ is a highly advanced and versatile product series offered by Analog Devices. It belongs to the family of inertial measurement units (IMUs), which are crucial components in a wide range of applications where accurate measurement of motion, orientation, and acceleration is required. This product series combines multiple sensors and advanced signal - processing capabilities into a single, compact package, providing users with a comprehensive solution for their inertial sensing needs.

## 2. Key Features

### 2.1 Sensor Integration
- **Tri - Axis Gyroscope**: The ADIS16445AMLZ incorporates a high - performance tri - axis gyroscope. This gyroscope can accurately measure angular rates around the three orthogonal axes (X, Y, and Z). It has a wide dynamic range, allowing it to detect both slow and rapid rotational movements. For example, in aerospace applications, it can precisely measure the pitch, roll, and yaw rates of an aircraft during flight maneuvers.
- **Tri - Axis Accelerometer**: Alongside the gyroscope, a tri - axis accelerometer is integrated. It measures linear acceleration in the three axes, enabling the detection of forces such as gravity and dynamic accelerations. This is useful in applications like robotics, where it can help the robot to sense its movement and orientation relative to the ground.
- **Tri - Axis Magnetometer**: The inclusion of a tri - axis magnetometer provides the ability to measure the magnetic field in three dimensions. This can be used for compass functionality, allowing the device to determine its heading relative to the Earth's magnetic field. In navigation systems, it helps in providing accurate directional information.

### 2.2 High Accuracy
- The sensors in the ADIS16445AMLZ are designed to offer high levels of accuracy. The gyroscope has low bias drift, which means that the error in the measured angular rate over time is minimized. Similarly, the accelerometer and magnetometer have high resolution and low noise characteristics, ensuring that the measured values are as close to the actual physical quantities as possible. This high accuracy is essential in applications such as precision guidance systems and virtual reality devices, where even small errors can lead to significant performance degradation.

### 2.3 Digital Output
- The product series provides digital output through a standard serial peripheral interface (SPI). This digital interface simplifies the integration of the ADIS16445AMLZ with microcontrollers, processors, and other digital systems. It also eliminates the need for complex analog - to - digital conversion circuits, reducing the overall system complexity and cost. The digital output format is well - defined and easy to interpret, allowing developers to quickly access and process the sensor data.

### 2.4 Self - Calibration
- The ADIS16445AMLZ features self - calibration capabilities. It can automatically adjust its internal parameters to compensate for factors such as temperature variations, sensor aging, and mechanical stress. This self - calibration ensures that the sensor performance remains stable over time and under different environmental conditions. For example, in automotive applications, where the temperature can vary significantly from the engine compartment to the exterior, the self - calibration feature helps to maintain accurate sensor readings.

### 2.5 Compact Package
- The device comes in a compact and rugged package, which is suitable for a variety of applications. Its small form factor allows for easy integration into space - constrained systems, such as unmanned aerial vehicles (UAVs) and wearable devices. The package is also designed to withstand mechanical shocks and vibrations, ensuring reliable operation in harsh environments.

## 3. Applications

### 3.1 Aerospace and Defense
- **Flight Control Systems**: In aircraft and UAVs, the ADIS16445AMLZ can be used to provide accurate information

Images for reference

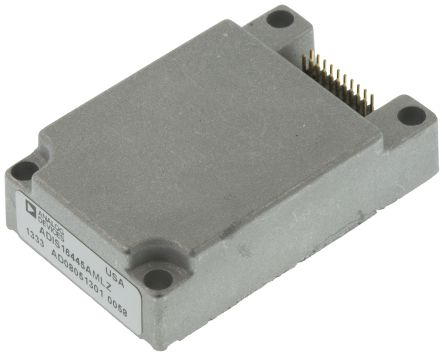

ADIS16445AMLZ

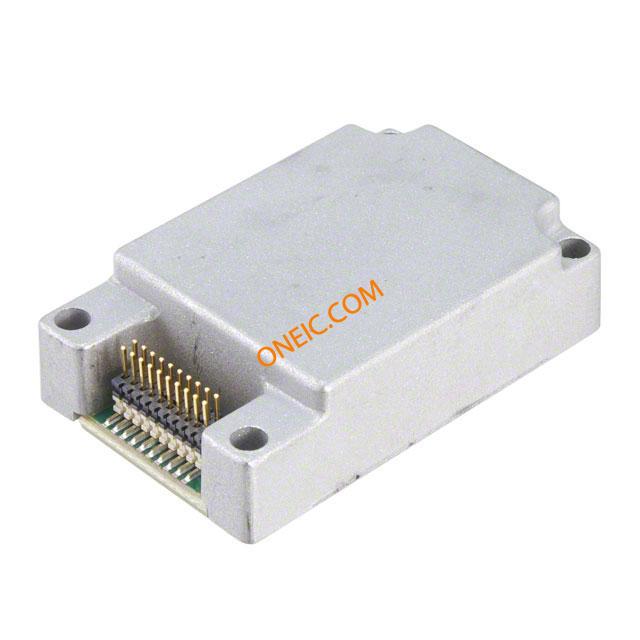

ADIS16445AMLZ
