ADIS16334

Evaluation boards for six-degree inertial sensors with gyroscope and accelerometer

Manufacturer: analog-devices

series introduction

# ADIS16334 Product Series Introduction

## 1. Overview
The ADIS16334 is a highly advanced and integrated inertial measurement unit (IMU) product series developed by Analog Devices. This series is designed to provide accurate and reliable motion sensing capabilities in a wide range of applications, from industrial equipment to aerospace and defense systems. It combines multiple sensors and signal - processing functions into a single, compact package, offering users a convenient and cost - effective solution for measuring motion parameters.

## 2. Key Features

### 2.1 Sensor Integration
- **Tri - axis Accelerometer**: The ADIS16334 incorporates a high - performance tri - axis accelerometer. This allows it to measure acceleration in three orthogonal directions (X, Y, and Z axes). The accelerometer can detect both static acceleration (such as gravity) and dynamic acceleration caused by motion. With high sensitivity and low noise, it can accurately capture even small changes in acceleration, making it suitable for applications like vibration monitoring and tilt sensing.
- **Tri - axis Gyroscope**: Alongside the accelerometer, a tri - axis gyroscope is integrated. The gyroscope measures the angular rate of rotation around the three axes. This is crucial for applications that require precise orientation and motion tracking, such as robotics and unmanned aerial vehicles (UAVs). It can provide real - time information about the rotational speed and direction of the device, enabling accurate control and navigation.

### 2.2 Digital Output
- The ADIS16334 provides digital output through a standard serial peripheral interface (SPI). This digital communication protocol simplifies the integration of the IMU with microcontrollers, processors, and other digital systems. The digital output format ensures high - speed data transfer and reduces the susceptibility to noise and interference compared to analog signals. It also allows for easy data processing and analysis using software algorithms.

### 2.3 Calibration and Compensation
- **Factory Calibration**: Each ADIS16334 device undergoes extensive factory calibration. This calibration process ensures that the sensors are accurately calibrated for sensitivity, bias, and cross - axis alignment. As a result, users can expect high - accuracy measurements right out of the box, without the need for complex in - field calibration procedures.
- **Temperature Compensation**: The product series includes built - in temperature compensation algorithms. Temperature variations can significantly affect the performance of accelerometers and gyroscopes. The temperature compensation feature adjusts the sensor readings based on the ambient temperature, ensuring stable and accurate measurements over a wide temperature range.

### 2.4 Low Power Consumption
- The ADIS16334 is designed with low power consumption in mind. This makes it suitable for battery - powered applications where power efficiency is crucial. The low power operation not only extends the battery life of the device but also reduces heat generation, which can further improve the reliability and performance of the IMU.

## 3. Applications

### 3.1 Industrial Automation
- **Robotics**: In robotic systems, the ADIS16334 can be used for motion control and navigation. The accelerometer and gyroscope data can be used to determine the position, orientation, and movement of the robot. This information is essential for tasks such as pick - and - place operations, path planning, and collision avoidance.
- **Machine Vibration Monitoring**: Industrial machines often generate vibrations during operation. Excessive vibrations can indicate mechanical problems or wear and tear. The ADIS16334 can be used to monitor these vibrations in real - time. By analyzing the acceleration data, maintenance personnel can detect potential issues early and take preventive measures to avoid costly breakdowns.

### 3.2 Aerospace and Defense
- **UAVs**: Unmanned aerial vehicles require accurate motion sensing for stable flight control and navigation. The ADIS16334

Images for reference

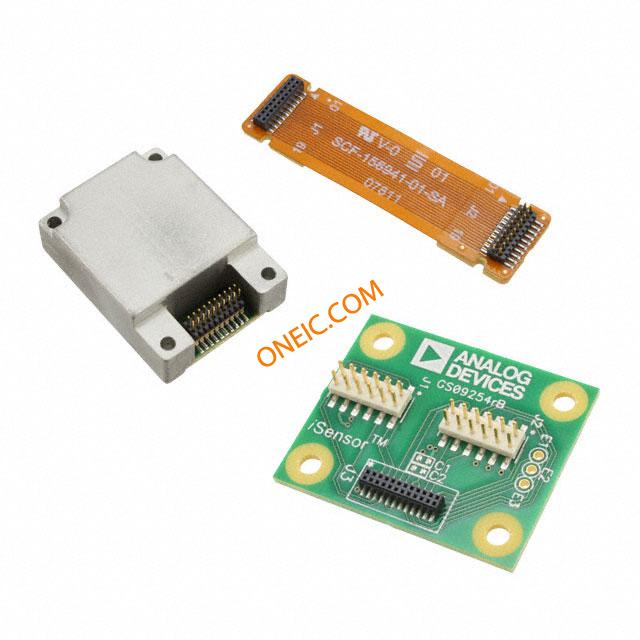

ADIS16334/PCBZ
