ADG5413
Analog Devices analog SPST switch ICs
Manufacturer： analog-devices
series introduction
The ADG5413 series is a family of precision analog switches designed to facilitate signal routing in a variety of electronic applications. Engineered by a leading innovator in semiconductor technology, the ADG5413 series boasts low on-resistance and excellent signal integrity, making it a reliable choice for both professional and consumer electronics. These switches utilize advanced CMOS technology, which minimizes power consumption while ensuring high-speed operation.
One of the key features of the ADG5413 series is its low on-resistance (typically around 0.5 ohms), which ensures minimal signal distortion and loss, allowing for high-fidelity signal processing. Additionally, the series operates over a wide supply voltage range, from 1.8V to 5.5V, making it versatile enough for integration into various circuit designs. The switches are characterized by their low total harmonic distortion (THD) and low leakage currents, which significantly enhance the performance of audio and video applications.
The design of the ADG5413 series prioritizes compactness and efficiency. The devices are housed in small, space-saving packages, making them ideal for applications where board space is at a premium. Their robust construction is suitable for a wide range of temperatures, further extending their usability in diverse environments.
The ADG5413 series is particularly well-suited for applications in audio signal switching, RF signal routing, and data acquisition systems. In consumer electronics, these switches are commonly used in mobile devices, televisions, and audio equipment to ensure seamless signal integrity and performance. In industrial environments, they can be employed in test and measurement equipment, where precision and reliability are paramount.
Overall, the ADG5413 series stands out for its combination of high performance, low power consumption, and flexible application potential, making it an excellent choice for engineers looking to enhance their circuit designs with reliable analog switching solutions.
Images for reference

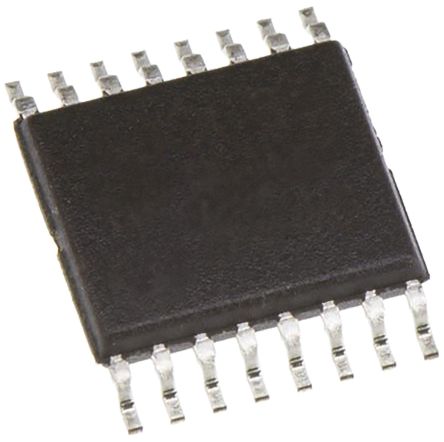

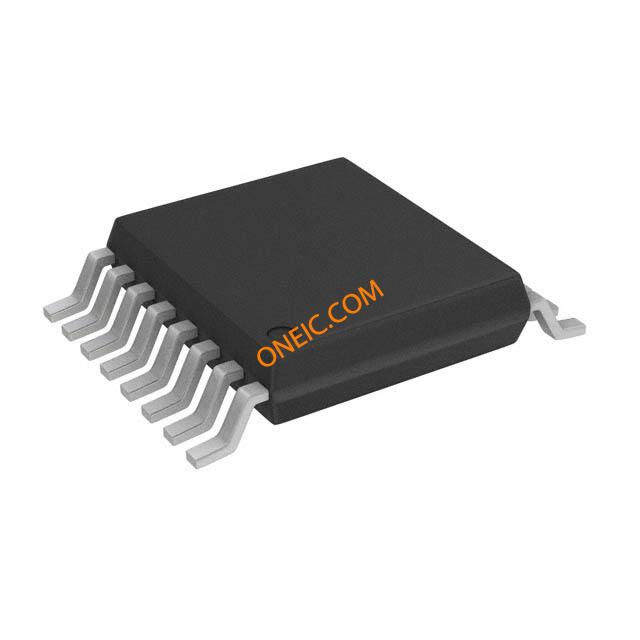

16-TSSOP
