ADE7854
Specialized energy metering ICs for data acquisition
Manufacturer： analog-devices
series introduction
The ADE7854 Series is a highly advanced line of energy metering integrated circuits designed for precision measurement in a variety of electrical systems. This series excels in providing accurate real-time data on energy consumption, voltage, current, power, and power factor, making it a critical component for smart grid applications and energy monitoring systems. The ADE7854 combines high-performance analog circuitry with digital signal processing capabilities, allowing for sophisticated metering functions while maintaining exceptional accuracy across a wide operating range.
One of the standout features of the ADE7854 Series is its ability to measure both active and reactive power, enabling comprehensive energy management solutions. The device utilizes a delta-sigma ADC architecture that achieves high resolution and low noise, ensuring that measurements are precise even in the presence of electrical noise. Furthermore, the ADE7854 supports multiple communication interfaces, including SPI and I2C, facilitating seamless integration into various system architectures.
The design of the ADE7854 emphasizes flexibility and ease of use. It is packaged in a compact, thermally efficient format, allowing for straightforward integration into existing circuitry without excessive board space requirements. The series also features a programmable gain amplifier, enabling users to tailor the measurement range to specific applications, which enhances the device's versatility across different use cases.
Typical applications for the ADE7854 Series include residential and commercial energy meters, power quality analyzers, and industrial automation systems. With the growing emphasis on energy efficiency and sustainability, the ADE7854 is particularly well-suited for smart home devices and IoT applications that require accurate energy consumption data for monitoring and control. The device's robust performance and adaptability make it an ideal choice for both new designs and retrofitting existing systems, empowering manufacturers to create innovative products that meet the demands of an evolving energy landscape.
In summary, the ADE7854 Series sets a high standard in energy metering technology, combining precision, flexibility, and ease of integration to support a wide range of applications in the energy sector.
Images for reference

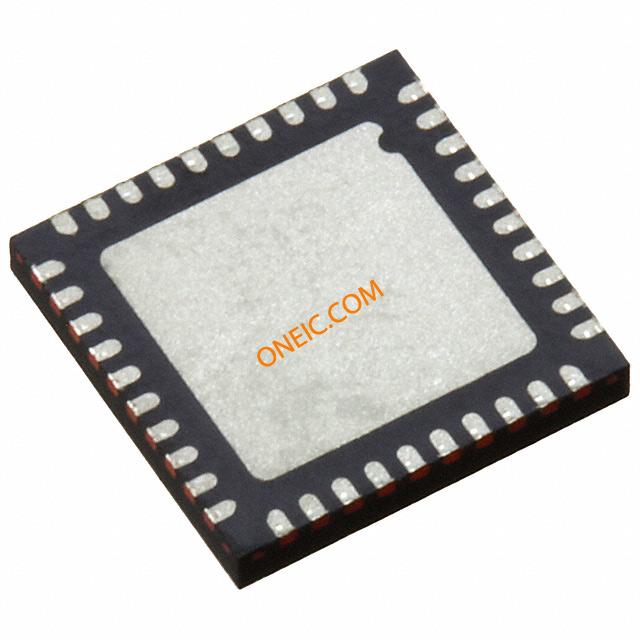

40-LFCSP-WQ (6x6)
