ADC14DC105

Dual 14-bit, 105 MSPS analog-to-digital converter evaluation board

Manufacturer: ['national-semiconductor', 'rochester', 'ti']

series introduction

# Introduction to the ADC14DC105 Product Series

## 1. Overview
The ADC14DC105 product series represents a cutting - edge line of analog - to - digital converters (ADCs) that are designed to meet the diverse and demanding requirements of modern electronic systems. These ADCs are engineered with advanced semiconductor technology to provide high - performance, accurate, and reliable conversion of analog signals into digital data.

## 2. Key Features

### High - Resolution Conversion
The ADC14DC105 series offers a 14 - bit resolution. This high level of resolution allows for the precise digitization of analog signals, enabling the capture of fine details and small changes in the input signal. Whether it is in a measurement application where accurate data is crucial or in a communication system where signal integrity is paramount, the 14 - bit resolution ensures that the digital output closely represents the original analog input.

### High Sampling Rate
With a sampling rate of up to 105 MSPS (Mega Samples Per Second), the ADC14DC105 series can handle high - frequency analog signals. This high sampling rate is essential for applications such as radar systems, high - speed data acquisition, and wireless communication, where rapid signal changes need to be accurately captured. It enables the ADC to keep up with fast - changing input signals and provides a sufficient number of samples for subsequent digital signal processing.

### Low Power Consumption
In today's energy - conscious world, power efficiency is a critical factor. The ADC14DC105 series is designed with low - power consumption in mind. By optimizing the internal circuit design and using advanced semiconductor processes, these ADCs consume significantly less power compared to similar products in the market. This not only reduces the overall power budget of the system but also helps in minimizing heat generation, which can improve the reliability and lifespan of the entire electronic system.

### Wide Input Voltage Range
The ADCs in this series support a wide input voltage range. This flexibility allows them to be used with a variety of analog signal sources, regardless of whether the signals are small - amplitude or large - amplitude. It simplifies the design process as there is no need for complex signal conditioning circuits to scale the input signals to a specific range, making the ADC14DC105 series suitable for a broad range of applications.

### Excellent Signal - to - Noise Ratio (SNR)
The ADC14DC105 series boasts an excellent signal - to - noise ratio. A high SNR means that the ADC can accurately distinguish the desired signal from the background noise. This is crucial in applications where the input signal may be weak or where noise interference is a concern, such as in medical imaging, audio processing, and environmental monitoring.

## 3. Applications

### Communication Systems
In wireless communication systems, the ADC14DC105 series can be used for baseband signal processing. It can convert the received analog radio frequency (RF) signals into digital data for further processing, such as demodulation and channel decoding. The high sampling rate and high resolution ensure that the communication system can handle high - speed data transmission and maintain good signal quality.

### Test and Measurement Equipment
For test and measurement applications, the ADC14DC105 series provides accurate and reliable data acquisition. It can be used in oscilloscopes, spectrum analyzers, and other measurement instruments to capture and analyze analog signals. The high - resolution conversion and wide input voltage range allow for precise measurement of various types of signals, from low - level electrical signals to high - voltage waveforms.

### Medical Imaging
In medical imaging technologies such as ultrasound and magnetic resonance imaging (MRI), the ADC14DC105 series can convert the analog signals received from the imaging sensors into digital data. The excellent SNR and high - resolution conversion are essential for producing clear and detailed

Images for reference

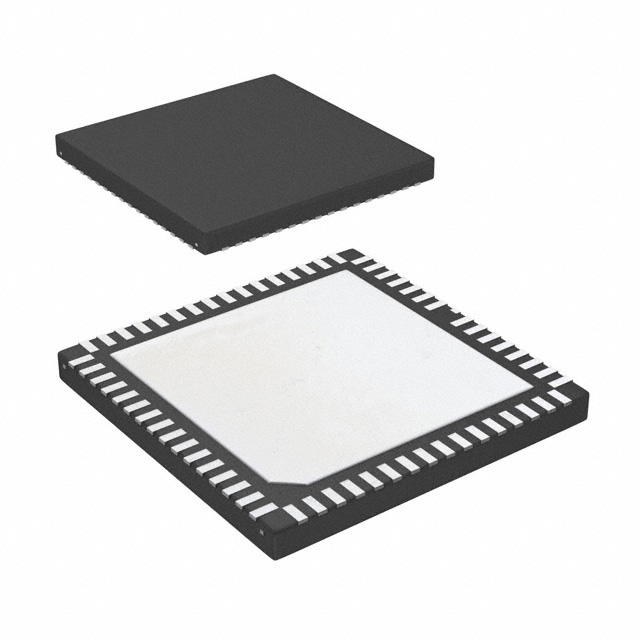

SQA60A

SQA60A

Image Preview

Image Preview

Datasheets

Partlist

ADC14DC105CISQ
ADC14DC105CISQE
ADC14DC105CISQE/NOPB
ADC14DC105CISQ/NOPB
ADC14DC105LFEB/NOPB
