# Introduction to the ADA4940 - 1ACPZ Product Series
## 1. Overview
The ADA4940 - 1ACPZ is a high - performance, single - channel, voltage feedback amplifier that belongs to Analog Devices' extensive portfolio of precision analog components. This product series is engineered to meet the demanding requirements of a wide range of applications, from high - speed data acquisition systems to advanced communication equipment.
## 2. Key Features
### 2.1 High - Speed Performance
- **Bandwidth**: The ADA4940 - 1ACPZ offers an extremely wide bandwidth. With a high - gain bandwidth product, it can handle high - frequency signals with ease. This makes it suitable for applications such as video signal processing, where accurate reproduction of high - frequency components of the video signal is crucial for clear and sharp images.
- **Slew Rate**: It has a fast slew rate, which enables the amplifier to quickly respond to rapid changes in the input signal. In applications like pulse - shaping circuits or high - speed data transmission, the fast slew rate ensures that the output signal can accurately follow the input signal without significant distortion.
### 2.2 Low Distortion
- **Harmonic Distortion**: The amplifier exhibits very low harmonic distortion. This is essential in audio applications, where low distortion is required to maintain the fidelity of the audio signal. Even at high frequencies and large signal amplitudes, the ADA4940 - 1ACPZ can keep the harmonic distortion at a minimum, providing a clean and accurate output.
- **Intermodulation Distortion**: Low intermodulation distortion is also a notable feature. In communication systems, where multiple signals are present simultaneously, low intermodulation distortion helps to prevent the generation of unwanted spurious signals, ensuring the integrity of the transmitted and received signals.
### 2.3 Low Noise
- **Input Noise Voltage**: The ADA4940 - 1ACPZ has a low input noise voltage. In sensitive measurement applications, such as in medical instrumentation or high - precision test equipment, low noise is critical to accurately detect and measure small signals. The low input noise voltage of this amplifier helps to minimize the noise added to the input signal, improving the signal - to - noise ratio of the overall system.
### 2.4 Wide Supply Voltage Range
- **Dual - Supply Operation**: It can operate from a wide range of dual - supply voltages. This flexibility allows designers to integrate the amplifier into different power supply architectures, depending on the specific requirements of the application. Whether it is a low - voltage system for portable devices or a high - voltage system for industrial applications, the ADA4940 - 1ACPZ can be easily adapted.
### 2.5 Rail - to - Rail Output
- **Full - Swing Output**: The amplifier provides rail - to - rail output operation. This means that the output voltage can swing very close to the positive and negative supply rails. In applications where the full dynamic range of the output signal is required, such as in battery - powered devices where maximizing the available voltage range is important, the rail - to - rail output feature is highly beneficial.
## 3. Package and Pinout
- **Package Type**: The ADA4940 - 1ACPZ comes in a specific package, which is designed for easy handling and PCB mounting. The package provides good thermal performance, ensuring that the amplifier can dissipate heat effectively during operation, even under high - power conditions.
- **Pinout Configuration**: The pinout of the ADA4940 - 1ACPZ is carefully designed to simplify the circuit layout. The input and output pins are clearly labeled, and the power supply pins are arranged in a way that minimizes the risk of power - related interference. This makes it easier for designers to integrate the amplifier into their circuits without having

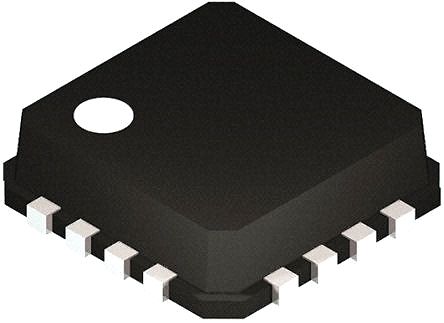

16-VFQFN Exposed Pad, CSP

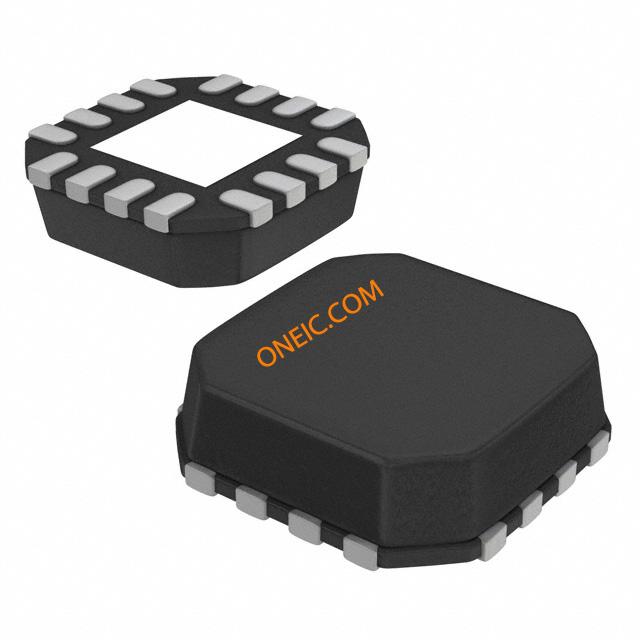

16-VFQFN
