AD9912
14 - bit 1GSPS DDS with 64 - pin LFCSP
Manufacturer： analog-devices
series introduction
The AD9912 series is a high-performance direct digital synthesizer (DDS) specifically developed to meet the rigorous demands of modern RF applications. This versatile chip boasts a wide frequency range, exceptional frequency resolution, and advanced modulation capabilities, making it an ideal solution for applications in telecommunications, instrumentation, and radar systems. With its ability to generate precise waveforms, the AD9912 series enables engineers to design sophisticated signal generation systems that require minimal external components.
One of the standout features of the AD9912 series is its impressive frequency range, capable of outputting frequencies up to 1.5 GHz. This is complemented by a frequency resolution of 1 Hz, allowing for fine-tuning of signal characteristics essential in high-precision applications. The integrated phase accumulator and digital-to-analog converter (DAC) enable the generation of complex modulated waveforms, including sine, square, and triangle waves, as well as arbitrary waveforms, providing unparalleled flexibility for signal generation.
The AD9912 series is characterized by its low power consumption and integrated features that simplify system design. The device incorporates a built-in high-speed serial interface, facilitating seamless communication with microcontrollers and other digital systems. Moreover, the flexibility of the AD9912 in terms of reference clock input and output configurations ensures compatibility with a wide range of system architectures and designs.
Typical applications for the AD9912 series span across various industries. In telecommunications, it is utilized in signal generation for base stations and mobile devices, where high fidelity and reliable performance are paramount. In the field of instrumentation, the AD9912 serves as a key component in test and measurement equipment, enabling precise frequency synthesis for signal testing and analysis. Furthermore, in radar and imaging systems, the synthesizer’s ability to produce high-frequency signals with low phase noise is critical for accurate target detection and resolution.
Overall, the AD9912 series stands out as a robust solution for engineers seeking high-performance signal generation capabilities in a compact, integrated package, making it an essential component in the development of advanced electronic systems.
Images for reference

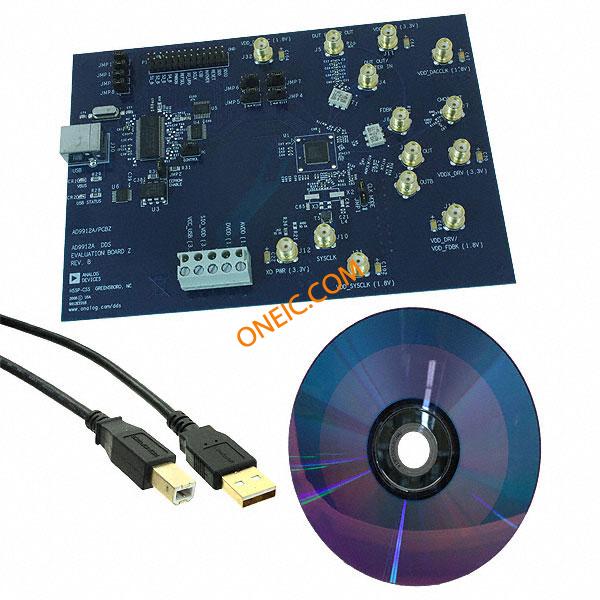

AD9912A/PCBZ

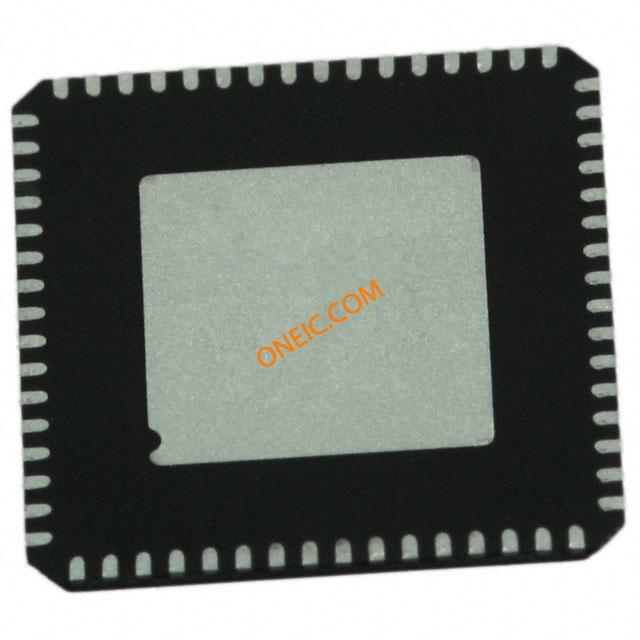

AD9912ABCPZ
