AD9508
Clock drivers and distribution evaluation boards
Manufacturer： analog-devices
series introduction
The AD9508 Series is a high-performance clock generator designed to meet the demanding requirements of modern electronic systems. This series is renowned for its ability to produce low-jitter, high-frequency clock signals, making it an ideal choice for applications in telecommunications, data communications, and high-speed digital systems. With a focus on precision and stability, the AD9508 Series supports a wide range of output frequencies, which can be tailored to the specific needs of the application, ensuring that it meets the exact timing requirements of diverse systems.
One of the standout features of the AD9508 Series is its integrated phase-locked loop (PLL) architecture, which enhances clock signal integrity by minimizing phase noise and jitter. The series offers a robust set of features including programmable output configurations, allowing users to select between single-ended and differential outputs, as well as various voltage levels to accommodate different system requirements. The ability to generate multiple clock outputs from a single input signal streamlines design complexity, reduces board space, and minimizes the need for additional peripheral components.
Designed for versatility, the AD9508 Series is suitable for a wide array of use cases, particularly in high-speed data applications such as Ethernet, USB, and PCIe interfaces. Its low power consumption makes it an excellent choice for battery-operated devices, while its high-frequency capabilities support demanding applications in networking and data acquisition systems. Moreover, the series is compliant with industry standards, ensuring seamless integration into existing designs and facilitating reliable performance in critical applications.
The AD9508 Series finds its applications across various sectors, including industrial automation, consumer electronics, and automotive systems. By delivering exceptional performance and flexibility, it empowers engineers to develop innovative solutions that push the boundaries of technology, ensuring that systems operate at peak efficiency and reliability. Whether it's enhancing data throughput in communication systems or improving timing accuracy in digital circuits, the AD9508 Series stands out as a premier choice for clock generation needs in contemporary electronic design.
Images for reference

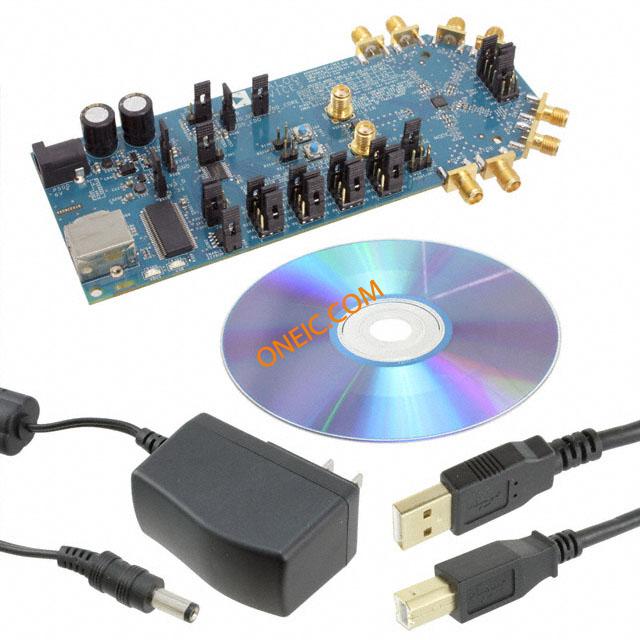

AD9508/PCBZ
Image Preview
Image Preview
