AD9233BCPZ-125

12-bit high-speed analog-to-digital converters with parallel interface

Manufacturer: ['rochester', 'analog-devices']

series introduction

# AD9233BCPZ - 125: A High - Performance Analog - to - Digital Converter Product Series

## 1. Overview
The AD9233BCPZ - 125 is a remarkable member of Analog Devices' high - performance analog - to - digital converter (ADC) product series. This ADC is engineered to meet the demanding requirements of a wide range of applications, from communication systems to industrial instrumentation, by providing accurate and efficient conversion of analog signals into digital data.

## 2. Key Features

### 2.1 High - Speed Conversion
The "125" in the part number indicates its sampling rate. The AD9233BCPZ - 125 can sample analog signals at a rate of up to 125 megasamples per second (MSPS). This high - speed sampling capability makes it suitable for applications that require real - time processing of high - frequency signals, such as wireless communication base stations, where rapid data acquisition is essential for accurate signal demodulation and analysis.

### 2.2 Resolution
It offers a 12 - bit resolution. This means that it can distinguish between 4096 (2^12) different voltage levels in the analog input signal. The high resolution allows for precise representation of the input signal, reducing quantization error and enabling more accurate digital processing of the converted data. In applications like medical imaging, where fine details in the signal are crucial, the 12 - bit resolution helps in obtaining clear and accurate images.

### 2.3 Low Power Consumption
In today's energy - conscious world, power efficiency is a critical factor. The AD9233BCPZ - 125 is designed with low power consumption in mind. It operates at relatively low power levels, which not only helps in reducing the overall power budget of the system but also minimizes heat generation. This is particularly important in portable devices and battery - powered applications, where long battery life is a key requirement.

### 2.4 Wide Input Voltage Range
The ADC has a wide input voltage range, which provides flexibility in interfacing with different types of analog sources. It can handle a variety of input signal amplitudes, allowing it to be used in diverse applications without the need for extensive signal conditioning. This feature simplifies the design process and reduces the cost and complexity of the overall system.

### 2.5 Excellent Signal - to - Noise Ratio (SNR)
The AD9233BCPZ - 125 offers an excellent SNR, which is a measure of the quality of the converted digital signal relative to the noise present in the input. A high SNR ensures that the digital output accurately represents the original analog signal, even in the presence of noise. This is crucial in applications such as audio processing and radar systems, where noise can significantly degrade the performance of the system.

## 3. Package and Pinout
The AD9233BCPZ - 125 comes in a BCPZ package. This package is designed to provide good thermal performance and mechanical stability. The pinout of the device is carefully designed to facilitate easy integration into printed circuit board (PCB) designs. It includes dedicated pins for analog input, digital output, power supply, and control signals, making it straightforward for designers to connect the ADC to other components in the system.

## 4. Applications

### 4.1 Communication Systems
In wireless communication, the AD9233BCPZ - 125 can be used in base stations for the conversion of received RF signals into digital data. Its high - speed sampling and excellent SNR enable accurate demodulation of complex modulation schemes, such as QPSK and 16 - QAM. In fiber - optic communication systems, it can be used for analog - to - digital conversion

Images for reference

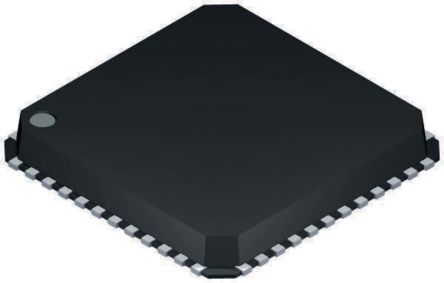

48-QFN
