# AD8309ARU Product Series Introduction
## 1. Overview
The AD8309ARU is a highly versatile and sophisticated integrated circuit product series developed by Analog Devices. It belongs to the category of RF (Radio Frequency) and IF (Intermediate Frequency) gain and phase measurement devices. This product series is designed to meet the demanding requirements of modern communication systems, test and measurement equipment, and other RF - related applications.
## 2. Key Features
### 2.1 Wide Frequency Range
The AD8309ARU operates over a very wide frequency range, typically from 1 MHz to 2.7 GHz. This broad frequency coverage makes it suitable for a diverse set of applications, including cellular communication systems (such as GSM, CDMA, and LTE), Wi - Fi, and other wireless communication standards. It can handle signals across multiple frequency bands, providing flexibility for system designers.
### 2.2 Accurate Gain and Phase Measurement
One of the standout features of the AD8309ARU is its ability to accurately measure both gain and phase of RF and IF signals. It can measure gain with an accuracy of ±0.5 dB and phase with an accuracy of ±2°. This high - level of accuracy is crucial in applications where precise signal characterization is required, such as in calibration of RF components and in test and measurement setups.
### 2.3 Differential Inputs
The device features differential inputs, which offer several advantages. Differential inputs provide better immunity to common - mode noise, which is especially important in noisy RF environments. They also allow for easy interfacing with other differential - output components, simplifying the overall system design.
### 2.4 Low Power Consumption
In today's energy - conscious world, the AD8309ARU is designed to consume relatively low power. It operates on a single 5 - V power supply and typically consumes around 100 mA of current. This low power consumption makes it suitable for battery - powered applications and helps in reducing the overall power budget of the system.
### 2.5 Small Package Size
The AD8309ARU comes in a small 16 - lead LFCSP (Lead - Frame Chip Scale Package). The compact size of the package makes it ideal for space - constrained applications, such as in handheld devices and miniaturized RF modules. It allows for high - density PCB (Printed Circuit Board) layouts, enabling more functionality to be packed into a smaller area.
## 3. Functional Block Diagram and Working Principle
### 3.1 Block Diagram
The AD8309ARU consists of several key functional blocks, including a gain and phase detector, a buffer amplifier, and an output amplifier. The input RF or IF signals are fed into the gain and phase detector through the differential inputs. The detector then measures the gain and phase difference between the two input signals. The measured values are then processed and amplified by the buffer and output amplifiers, and the results are available at the output pins.
### 3.2 Working Principle
When two RF or IF signals are applied to the differential inputs of the AD8309ARU, the gain and phase detector compares the amplitudes and phases of these two signals. The gain measurement is based on the ratio of the amplitudes of the two input signals, while the phase measurement is based on the phase difference between them. The detector uses a combination of analog and digital techniques to accurately measure these parameters. The output signals are then converted into voltage levels that are proportional to the measured gain and phase values.
## 4. Applications
### 4.1 Communication Systems
In wireless communication systems, the AD8309ARU is used for signal strength and phase monitoring. For example, in base stations, it can be used to measure the gain and phase

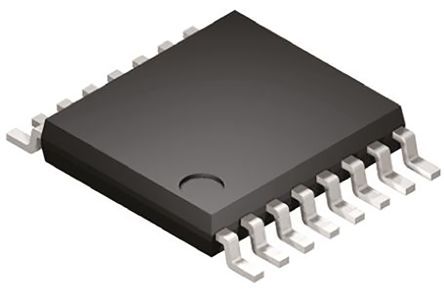

16-TSSOP
