AD8232
Analog Devices' heart rate monitor components
Manufacturer： analog-devices
series introduction
The AD8232 Series is a highly integrated, low-power bio-potential measurement amplifier designed for medical and health monitoring applications. This innovative series stands out due to its ability to amplify small biopotential signals, such as those from electrocardiograms (ECGs), making it an essential component in wearable health monitoring devices, portable medical equipment, and fitness trackers.
One of the key features of the AD8232 Series is its low noise architecture, which is crucial for accurately capturing faint bio-signals from the human body. The amplifier achieves a high common-mode rejection ratio (CMRR), effectively eliminating interference from external noise sources, thus ensuring high fidelity signal amplification. Additionally, the device operates on a low power supply, making it ideal for battery-operated devices. Its power consumption is optimized for continuous monitoring applications, extending the battery life of portable health monitors.
The design characteristics of the AD8232 Series include a compact package that allows for easy integration into space-constrained environments. The device features a programmable gain amplifier (PGA) that enables users to adjust the gain to suit specific application needs, enhancing versatility in various settings. The series also incorporates an internal reference voltage, allowing for simplified design and reduced component count, which is beneficial for manufacturers seeking to streamline production processes.
The typical applications of the AD8232 Series are abundant in the healthcare sector, including ECG monitors, heart rate monitors, and other telemedicine devices. Beyond medical applications, it is also increasingly utilized in fitness monitoring devices, enabling users to track their heart rate and overall health metrics in real-time. The AD8232 amplifier is also suitable for research and development in biomedical engineering, where precise biopotential measurements are essential.
In summary, the AD8232 Series is a state-of-the-art solution for biopotential signal acquisition, combining low power consumption, high performance, and flexible design features, making it a preferred choice for innovative health monitoring systems in both clinical and consumer applications.
Images for reference

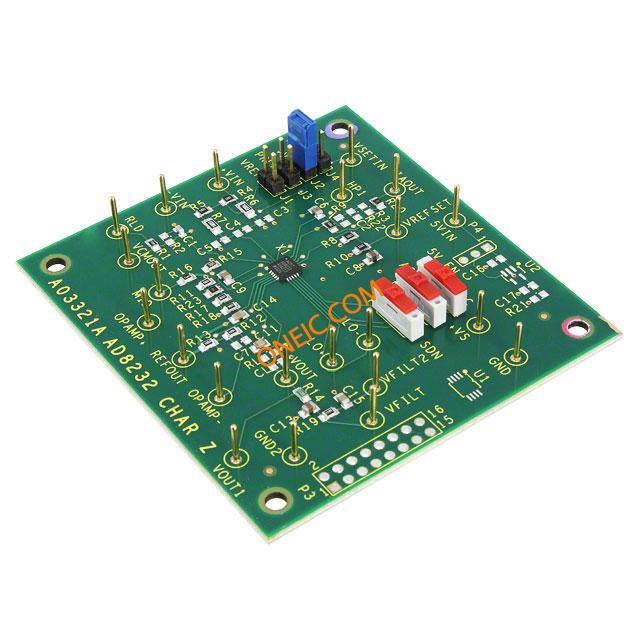

AD8232-EVALZ
