AD8015ARZ

series introduction

# AD8015ARZ: A High - Performance Operational Amplifier Series

## 1. Overview
The AD8015ARZ is a remarkable product series within the realm of operational amplifiers, brought to you by Analog Devices. Renowned for its high - speed performance, low distortion, and excellent signal - handling capabilities, this series is designed to meet the diverse needs of modern electronic systems. Whether it's in communication, instrumentation, or audio applications, the AD8015ARZ stands out as a reliable and efficient choice.

## 2. Key Features

### 2.1 High - Speed Performance
- **Slew Rate**: The AD8015ARZ offers an impressively high slew rate. Slew rate is a measure of how fast an op - amp can change its output voltage. With a high slew rate, it can handle rapid changes in the input signal, making it suitable for applications that require fast signal processing, such as high - speed data acquisition systems and video signal amplification.
- **Gain - Bandwidth Product**: It has a wide gain - bandwidth product. This parameter indicates the frequency range over which the amplifier can maintain a specified gain. A large gain - bandwidth product allows the AD8015ARZ to operate effectively at high frequencies, enabling it to amplify high - frequency signals without significant attenuation.

### 2.2 Low Distortion
- **Total Harmonic Distortion (THD)**: The series exhibits extremely low total harmonic distortion. THD measures the amount of harmonic content added to the output signal compared to the input signal. Low THD ensures that the amplified signal closely resembles the original input signal, which is crucial in applications where signal fidelity is of utmost importance, such as audio systems and high - precision measurement instruments.

### 2.3 Low Noise
- **Input Noise Voltage**: The AD8015ARZ has a low input noise voltage. Noise can degrade the quality of the amplified signal, especially in low - level signal applications. By minimizing the input noise voltage, the amplifier can accurately amplify weak signals without introducing excessive noise, making it ideal for applications like sensor signal conditioning.

### 2.4 Wide Supply Voltage Range
- **Dual - Supply Operation**: It supports dual - supply operation, which provides flexibility in different circuit designs. The ability to operate with both positive and negative supply voltages allows the amplifier to handle signals that swing above and below ground, enabling it to amplify a wider range of input signals.

## 3. Package and Pin Configuration
- **Package Type**: The AD8015ARZ comes in a small - outline integrated circuit (SOIC) package. This package is widely used in the electronics industry due to its compact size and ease of handling during the assembly process.
- **Pin Configuration**: The pin configuration of the AD8015ARZ is designed for easy integration into various circuits. It has dedicated pins for the input signals (inverting and non - inverting inputs), power supply connections (positive and negative supply pins), and the output pin. The clear and well - defined pin layout simplifies the circuit design process and reduces the chances of wiring errors.

## 4. Applications

### 4.1 Communication Systems
- **RF Signal Amplification**: In radio frequency (RF) communication systems, the AD8015ARZ can be used to amplify RF signals. Its high - speed performance and low distortion characteristics ensure that the amplified RF signals maintain their integrity, which is essential for reliable communication.
- **Baseband Signal Processing**: For baseband signal processing in wireless communication systems, the amplifier can be employed to amplify and condition the baseband signals before further processing, such as modulation and demodulation.

### 4.2 Instrumentation
- **Sensor Signal Conditioning**: Many sensors produce weak electrical signals that need to be amplified and

Images for reference

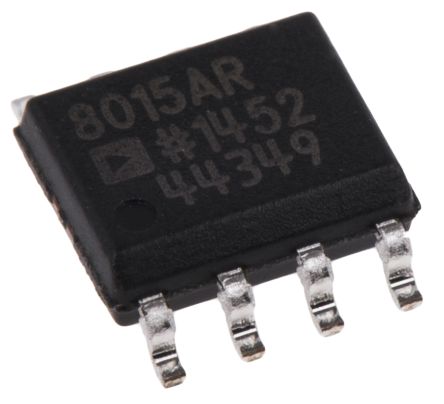

8-SOIC

Image Preview

Image Preview
