AD7988
16 - bit ADCs with various speeds and packages
Manufacturer： analog-devices
series introduction
The AD7988 series is a cutting-edge line of high-speed, low-power, 16-bit successive approximation register (SAR) analog-to-digital converters (ADCs) designed for precision measurement applications across a variety of industries. This series is renowned for its exceptional performance, featuring a sampling rate of up to 1 MSPS and a signal-to-noise ratio (SNR) of 90 dB, which ensures accurate and reliable data acquisition from analog signals. The AD7988 series incorporates a differential input architecture, enabling it to effectively reject common-mode noise and improve overall signal integrity.
One of the key design characteristics of the AD7988 series is its integrated low-noise reference and its advanced digital filter, which enhances the ADC's dynamic performance while minimizing power consumption. Operating from a single 2.5 V to 5 V supply, these ADCs are optimized for battery-powered devices, making them ideal for applications where energy efficiency is paramount. The series also offers a flexible interface, supporting both SPI and parallel data output, which allows for seamless integration into various digital systems.
The AD7988 series is particularly suitable for use cases in industrial automation, medical devices, and instrumentation, where high precision and reliability are critical. Its ability to convert analog signals from sensors into digital data at high speed makes it an excellent choice for applications such as industrial process control, data acquisition systems, and portable medical diagnostic equipment. Additionally, the series finds extensive use in the automotive sector for tasks like sensor data processing and monitoring systems, where robust performance in challenging environments is essential.
In summary, the AD7988 series delivers a combination of high resolution, rapid sampling capabilities, and low power consumption, making it a versatile solution for a wide range of demanding applications. Its innovative design and reliable performance ensure that it meets the needs of engineers and designers seeking to enhance their systems with superior data conversion technology.
Images for reference

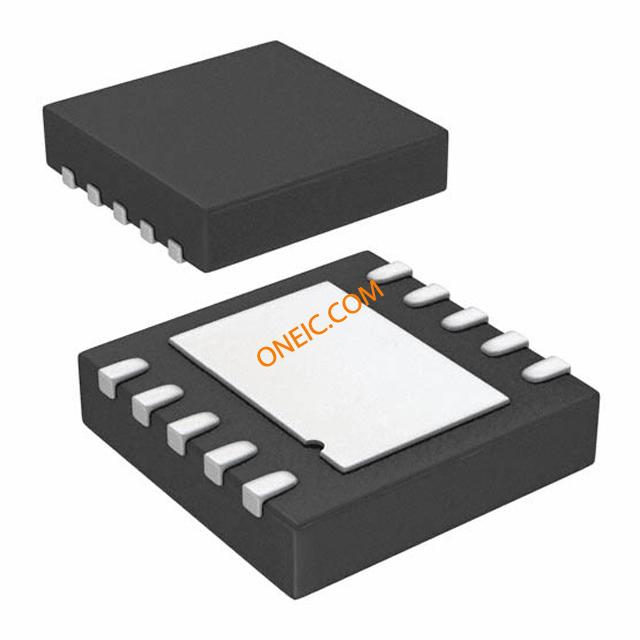

10-LFSCP, CP-10-9
10-TFSOP, 10-MSOP
