AD7891BS
12 - bit ADCs and data acquisition systems
Manufacturer： ['rochester', 'analog-devices']
series introduction
The AD7891BS series represents a cutting-edge line of high-speed, 12-bit analog-to-digital converters (ADCs) that deliver exceptional performance for a variety of precision measurement applications. Renowned for their speed and accuracy, the AD7891BS series is designed to operate at a maximum sampling rate of 1 MSPS (mega samples per second), making it an ideal choice for applications requiring rapid data acquisition without compromising on resolution. The architecture of these ADCs features a successive approximation register (SAR) design, which enhances their performance in terms of speed, power efficiency, and linearity.
One of the key features of the AD7891BS series is its built-in, low-noise reference and high-speed serial interface, allowing for easy integration into existing systems. This series also supports both single-ended and differential input configurations, offering versatility in signal processing. The device operates within a wide voltage range, ensuring compatibility with various power supply systems, which makes it suitable for a broad spectrum of applications, from industrial automation to medical instrumentation.
Design characteristics of the AD7891BS series highlight its compact form factor, making it easy to incorporate into space-constrained printed circuit boards (PCBs). The device is housed in a small LFCSP package, which facilitates efficient thermal management and minimizes parasitic effects. Furthermore, the low power consumption of the AD7891BS series ensures that it can be utilized in battery-operated devices, extending operational life without sacrificing performance.
Typical use cases for the AD7891BS series include data acquisition systems, portable medical devices, and high-speed data loggers, as well as industrial process control and instrumentation applications. Its ability to provide high-resolution data at impressive speeds positions it as an optimal solution for applications that demand accuracy and rapid response. With its robust performance and versatile design, the AD7891BS series stands out in the realm of high-speed analog-to-digital conversion, catering to a wide range of industries and technical needs.
Images for reference

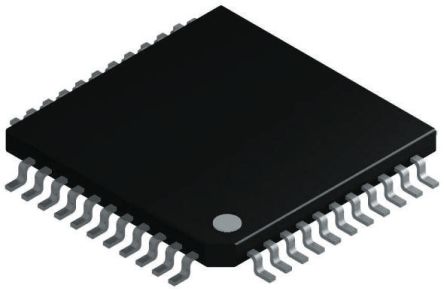

44-QFP

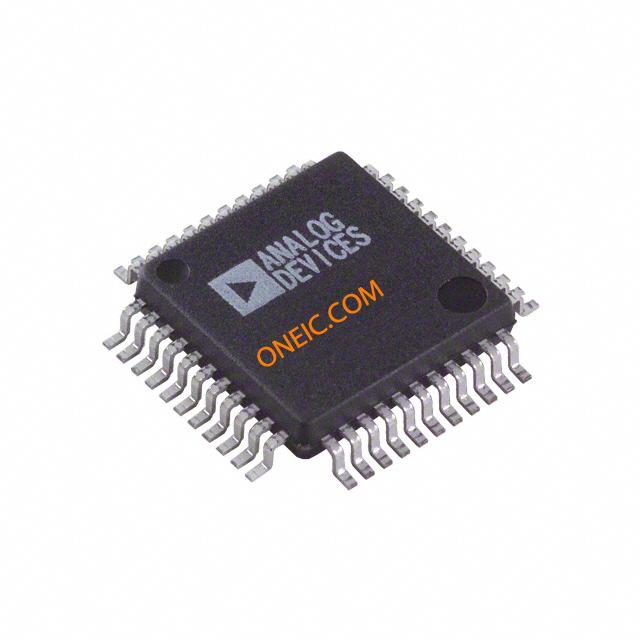

44-MQFP Pkg
Image Preview
