AD7685CRMZ
16-bit SAR ADCs with serial interface in 10-pin MSOP packages
Manufacturer： ['rochester', 'analog-devices']
series introduction
# AD7685CRMZ Product Series Introduction
## 1. Overview
The AD7685CRMZ belongs to a high - performance product series developed by Analog Devices. It is an analog - to - digital converter (ADC) that plays a crucial role in various electronic systems where accurate conversion of analog signals to digital data is required. This product series is designed to meet the demanding needs of applications in industrial, instrumentation, and communication fields.
## 2. Key Features
### 2.1 High Resolution
The AD7685CRMZ offers a high - resolution conversion of up to 16 bits. This high level of resolution enables it to accurately capture small changes in the input analog signal, making it suitable for applications that require precise measurement, such as sensor data acquisition in industrial automation. For example, in a temperature sensor system, the high - resolution ADC can detect even the slightest temperature variations, providing more accurate data for process control.
### 2.2 Fast Sampling Rate
It has a relatively fast sampling rate, which allows it to quickly convert analog signals into digital values. This is essential in applications where real - time data processing is necessary, like in communication systems. In a wireless communication receiver, the fast sampling rate of the AD7685CRMZ enables it to capture and process high - frequency signals in a timely manner, ensuring reliable data reception.
### 2.3 Low Power Consumption
Power efficiency is a significant advantage of the AD7685CRMZ series. With its low power consumption design, it is suitable for battery - powered devices or applications where energy conservation is a priority. For instance, in portable medical devices, the low power consumption of the ADC helps to extend the battery life, allowing the device to operate for longer periods without frequent recharging.
### 2.4 Wide Input Voltage Range
The product supports a wide input voltage range, which provides flexibility in different application scenarios. It can handle both small - amplitude and large - amplitude analog signals. In an industrial power monitoring system, the wide input voltage range allows the ADC to measure various voltage levels in the power grid, from low - voltage control signals to high - voltage power lines.
### 2.5 SPI Interface
The AD7685CRMZ is equipped with a Serial Peripheral Interface (SPI). This interface simplifies the connection between the ADC and microcontrollers or other digital devices. The SPI interface offers high - speed data transfer, allowing for efficient communication between the ADC and the rest of the system. It also supports daisy - chaining multiple ADCs, which is useful in applications that require multiple channels of analog - to - digital conversion.
## 3. Functional Block Diagram and Working Principle
### 3.1 Block Diagram
The main components of the AD7685CRMZ include an input buffer, a successive - approximation register (SAR) ADC core, a reference voltage source, and the SPI interface. The input buffer is responsible for isolating the input analog signal from the internal circuitry of the ADC, ensuring accurate signal acquisition. The SAR ADC core performs the actual analog - to - digital conversion process. The reference voltage source provides a stable voltage reference for the conversion, and the SPI interface is used for data communication with external devices.
### 3.2 Working Principle
When an analog signal is applied to the input of the AD7685CRMZ, the input buffer first conditions the signal. Then, the SAR ADC core starts the conversion process. It compares the input signal with a series of reference voltages generated internally based on the SAR algorithm. Through a series of successive approximations, the ADC determines the digital value that corresponds to the input analog signal. Once the conversion is complete, the digital data is transferred to the external device via the SPI interface.
## 4. Applications
### 4.1 Industrial Automation
In industrial automation systems,
Images for reference

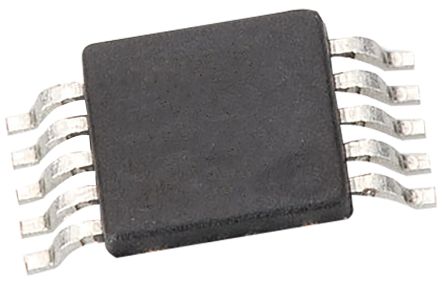

10-TFSOP, 10-MSOP
