AD5689
16 - bit dual DACs with SPI interface
Manufacturer： analog-devices
series introduction
The AD5689 series is a cutting-edge family of 16-bit digital-to-analog converters (DACs) known for their exceptional precision, low power consumption, and robust performance in various applications. Designed by Analog Devices, the AD5689 series features a dual-channel architecture that provides simultaneous output capabilities, making it ideal for applications that require correlated signal generation or multi-channel systems. With a voltage output range of 0V to VDD and a high accuracy of ±1 LSB INL (integral non-linearity), these DACs ensure high fidelity in converting digital signals to analog.
One of the standout features of the AD5689 series is its low power operation, which allows for extended battery life in portable devices without compromising performance. The DACs operate within a supply voltage range of 2.7V to 5.5V, catering to both low-voltage and standard voltage applications. Moreover, the series incorporates an internal reference, simplifying design requirements and enhancing system reliability by minimizing external component dependency. The AD5689's I2C-compatible interface allows for straightforward integration into existing systems, enabling seamless communication and control.
The design of the AD5689 series emphasizes versatility, making it suitable for a wide range of use cases across various industries. Common applications include industrial automation, process control, instrumentation, and medical devices, where high precision and reliability are paramount. The dual-output capability is particularly beneficial in signal conditioning circuits, where simultaneous control of multiple parameters is crucial. Furthermore, the AD5689 series finds extensive use in consumer electronics, such as audio equipment and imaging systems, where accurate and responsive analog signal generation enhances overall performance.
In summary, the AD5689 series stands out as a top-tier choice for engineers seeking high-performance DAC solutions. Its combination of precision, low power consumption, and flexibility makes it a suitable candidate for both complex and straightforward applications in diverse sectors, ensuring reliable performance in demanding environments.
Images for reference
16-TSSOP

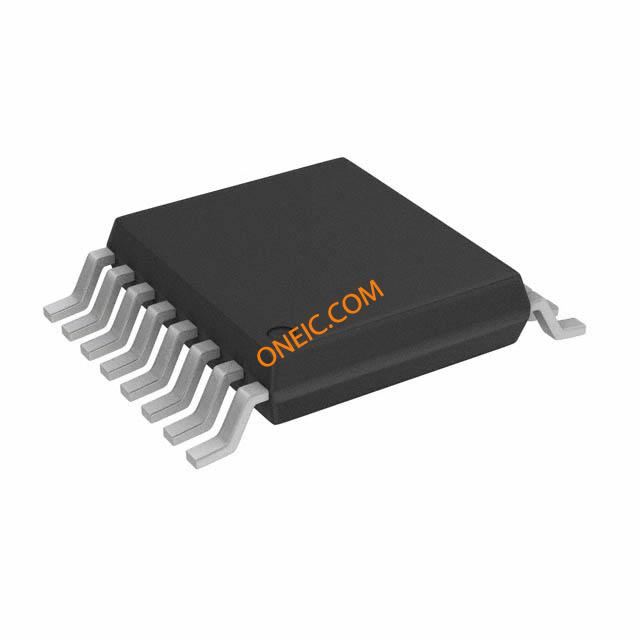

16-TSSOP, RU-16

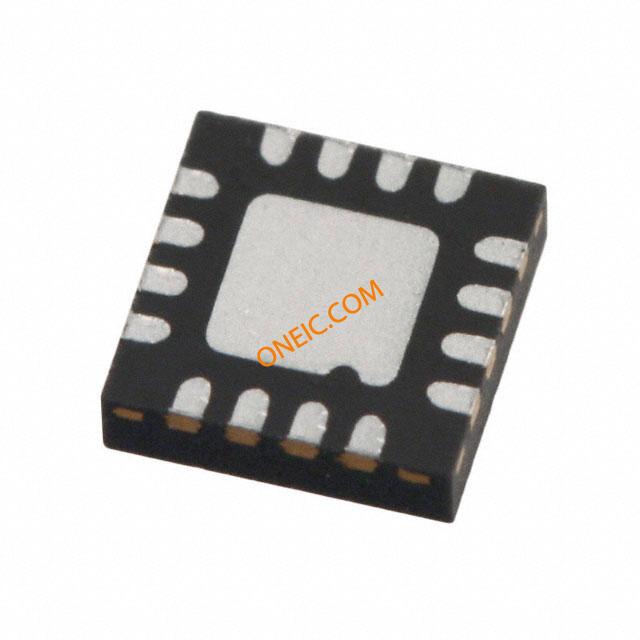

16-WFQFN Exposed Pad, CSP
