AD5687
12 - bit dual DACs with SPI interface
Manufacturer： analog-devices
series introduction
The AD5687 Series is a family of precision, low-power digital-to-analog converters (DACs) that stand out for their high performance and versatility in a range of industrial applications. These DACs are equipped with a 16-bit resolution, offering exceptional accuracy and linearity, which are critical for applications requiring precise signal generation and control. With an integrated serial peripheral interface (SPI), the AD5687 facilitates seamless digital communication, allowing for easy integration with microcontrollers and other digital systems.
One of the key features of the AD5687 Series is its low power consumption, which makes it an ideal choice for battery-operated devices and applications where energy efficiency is paramount. The series operates from a single supply voltage, further simplifying the design and reducing the overall system complexity. Additionally, it boasts a fast settling time and low output noise, enabling high-quality analog output even in noise-sensitive environments.
Designed for flexibility, the AD5687 Series provides multiple output ranges, accommodating various application requirements. The DACs can be configured for single-ended or differential outputs, enhancing their adaptability for different circuit designs. Furthermore, the series includes built-in features such as power-on reset and programmable gain, which enhance the reliability and functionality of the device in real-world applications.
The AD5687 Series is particularly suitable for a variety of applications across multiple industries, including industrial automation, medical instrumentation, and telecommunications. In industrial settings, these DACs can be used for process control, signal conditioning, and sensor interfacing, providing precise analog control with minimal drift. In the medical field, their high resolution and low noise characteristics make them ideal for imaging systems and patient monitoring devices. Additionally, in telecommunications, the AD5687 can facilitate high-fidelity signal generation for data transmission and processing.
Overall, the AD5687 Series exemplifies a robust solution for engineers seeking high-performance DACs that deliver precision, efficiency, and versatility in demanding applications.
Images for reference

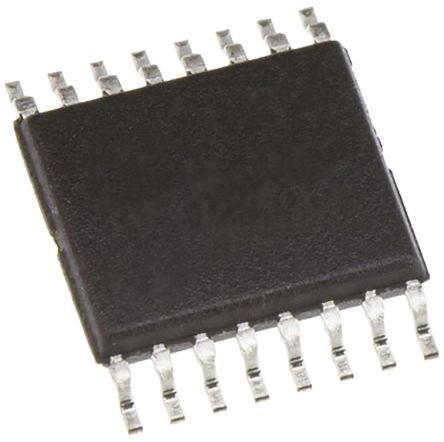

16-TSSOP
16-TSSOP, RU-16
