AD5231BRUZ50

1024-position digital potentiometer in 16-pin TSSOP package

Manufacturer: analog-devices

series introduction

# AD5231BRUZ50 Product Series Introduction

## 1. Overview
The AD5231BRUZ50 is a remarkable product within Analog Devices' portfolio of digital potentiometers. Digital potentiometers, also known as digipots, are electronic components that mimic the functionality of traditional mechanical potentiometers but with the added advantages of digital control, high precision, and enhanced reliability. The AD5231BRUZ50 series is designed to meet the diverse needs of modern electronic systems, offering a wide range of applications in areas such as audio volume control, sensor calibration, power supply adjustment, and more.

## 2. Key Features

### 2.1 Resistance and Resolution
- **Resistance Value**: The "50" in the part number indicates that the AD5231BRUZ50 has a nominal resistance of 50 kΩ. This resistance value is suitable for a variety of applications where medium - to high - resistance settings are required.
- **Resolution**: It offers a high resolution, typically with a large number of wiper positions. This allows for fine - grained adjustment of the resistance, enabling precise control in applications where small changes in resistance can have a significant impact on the system's performance.

### 2.2 Digital Interface
- **I²C Interface**: The AD5231BRUZ50 is equipped with an I²C (Inter - Integrated Circuit) interface. This is a widely used serial communication protocol that allows for easy integration with microcontrollers, microprocessors, and other digital devices. The I²C interface simplifies the control of the digipot, enabling remote and automated adjustment of the resistance value.
- **Addressability**: Multiple AD5231BRUZ50 devices can be connected to the same I²C bus by using different device addresses. This feature makes it possible to control multiple digipots simultaneously in a single system, increasing the flexibility and scalability of the design.

### 2.3 Low Power Consumption
- The device is designed to operate with low power consumption, making it suitable for battery - powered applications and energy - efficient systems. This low power requirement helps to extend the battery life of portable devices and reduces the overall power consumption of the system, contributing to a more sustainable and cost - effective design.

### 2.4 Temperature Stability
- The AD5231BRUZ50 exhibits excellent temperature stability. The resistance value remains relatively constant over a wide temperature range, ensuring reliable performance in different environmental conditions. This is crucial for applications where the system may be exposed to varying temperatures, such as industrial control systems and automotive electronics.

### 2.5 Non - Volatile Memory
- It features non - volatile memory, which means that the wiper position is retained even when the power is removed. This is a significant advantage as it eliminates the need to re - initialize the digipot every time the system is powered on, saving time and simplifying the system design.

## 3. Applications

### 3.1 Audio Systems
- **Volume Control**: In audio amplifiers and sound systems, the AD5231BRUZ50 can be used to control the volume. The digital control allows for precise volume adjustment, and the I²C interface enables integration with audio processors and microcontrollers for advanced audio features such as remote control and volume presets.
- **Equalization**: It can also be used in audio equalizers to adjust the gain at different frequency bands. The high resolution of the digipot allows for fine - tuning of the equalization curve, improving the audio quality.

### 3.2 Sensor Calibration
- Many sensors, such as pressure sensors, temperature sensors, and light sensors, require calibration to ensure accurate measurements. The AD5231BRUZ50 can be used to adjust the sensor's output signal

Images for reference

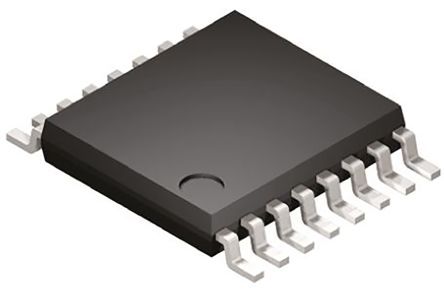

16-TSSOP

16-TSSOP

Image Preview

Image Preview

Image Preview

Image Preview
