AD5142ABRUZ
Dual-channel digital potentiometers with non-volatile memory, I2C interface, 16-TSSOP package
Manufacturer： analog-devices
series introduction
# AD5142ABRUZ Product Series Introduction
## 1. Overview
The AD5142ABRUZ is a remarkable product series offered by Analog Devices, a leading name in the semiconductor industry. This series belongs to the category of digital potentiometers, which are electronic components that mimic the functionality of traditional mechanical potentiometers but with the added advantages of digital control, high precision, and enhanced reliability.
## 2. Key Features
### 2.1 Digital Control
One of the most significant features of the AD5142ABRUZ series is its digital control interface. It can be easily controlled via an I²C (Inter - Integrated Circuit) bus, which is a widely used serial communication protocol. This digital control allows for seamless integration with microcontrollers, microprocessors, and other digital systems. Designers can precisely adjust the resistance value of the potentiometer through software commands, eliminating the need for manual adjustment as in traditional potentiometers. This is particularly useful in applications where remote or automated control is required.
### 2.2 High Resolution
The AD5142ABRUZ offers a high resolution of 256 taps. This means that the resistance can be adjusted in 256 discrete steps, providing a high level of precision in setting the desired resistance value. In comparison to lower - resolution potentiometers, the high resolution of this series enables more accurate control of voltage division, gain adjustment, and other parameters in electronic circuits.
### 2.3 Non - Volatile Memory
Each device in the AD5142ABRUZ series is equipped with non - volatile memory. This feature allows the device to retain its last - set resistance value even when the power is removed. When the power is restored, the potentiometer automatically resumes operation with the previously set resistance, which is extremely convenient in applications where the resistance setting needs to be maintained across power cycles, such as in industrial control systems and instrumentation.
### 2.4 Low Temperature Coefficient
The AD5142ABRUZ has a low temperature coefficient of resistance (TCR). This means that the resistance value of the potentiometer changes very little with variations in temperature. A low TCR ensures the stability of the circuit performance over a wide temperature range, making the product suitable for use in harsh environments where temperature fluctuations are common, such as automotive and aerospace applications.
### 2.5 Wide Supply Voltage Range
It can operate over a wide supply voltage range, typically from 2.7 V to 5.5 V. This wide voltage range provides flexibility in powering the device, allowing it to be easily integrated into different types of electronic systems with varying power supply requirements.
## 3. Applications
### 3.1 Audio Systems
In audio systems, the AD5142ABRUZ can be used for volume control, tone adjustment, and balance control. The digital control feature enables seamless integration with audio processors and microcontrollers, allowing for precise and automated adjustment of audio parameters. The high resolution ensures smooth and accurate volume and tone adjustments, providing a better audio experience for users.
### 3.2 Industrial Automation
In industrial automation, the AD5142ABRUZ is used for calibration and adjustment of sensors, actuators, and control loops. The non - volatile memory ensures that the calibration settings are retained even during power outages, reducing the need for frequent recalibration. The digital control interface allows for remote adjustment of parameters, which is essential in large - scale industrial plants.
### 3.3 Test and Measurement Equipment
Test and measurement equipment often require precise adjustment of resistance values for accurate measurements. The high resolution and low TCR of the AD5142ABRUZ make it an ideal choice for such applications. It can be used in oscilloscopes, multimeters, and other test equipment to adjust gain, offset, and
Images for reference

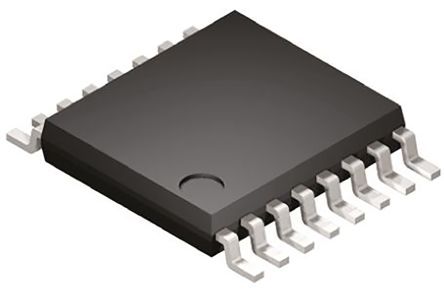

16-TSSOP
