AD5110BCPZ
128 - position digital potentiometer ICs
Manufacturer： analog-devices
series introduction
The AD5110BCPZ series represents a sophisticated line of digital potentiometers that offers unparalleled precision and versatility for a wide range of applications. Designed by Analog Devices, this series is engineered to meet the demanding requirements of modern electronic systems, making it an ideal choice for both consumer and industrial applications. The AD5110BCPZ features a single-channel, 256-position digital potentiometer architecture, which allows for fine-tuning of resistance values through a simple digital interface, ensuring accuracy and ease of use.
One of the key features of the AD5110BCPZ series is its robust architecture that includes non-volatile memory. This allows the device to retain its settings even after power loss, providing a seamless user experience in applications where consistent performance is crucial. The series operates from a single supply voltage, typically ranging from 2.7V to 5.5V, making it highly adaptable to various system designs. Additionally, the AD5110BCPZ exhibits low power consumption, which is essential for battery-operated devices, further enhancing its appeal in portable applications.
In terms of design characteristics, the AD5110BCPZ is housed in a compact 8-lead MSOP package, making it suitable for space-constrained environments. Its pin configuration supports easy integration into existing circuits, facilitating straightforward implementation in new projects. The series also boasts excellent linearity and low temperature drift, ensuring reliable performance across a wide temperature range.
The AD5110BCPZ series is particularly well-suited for applications such as audio volume control, sensor calibration, and adjustable gain settings in amplifiers. Its high resolution and precise control make it an excellent choice for automotive electronics, medical devices, and industrial automation systems. As the demand for precision and reliability continues to grow in the electronics industry, the AD5110BCPZ series stands out as a dependable solution for engineers seeking to enhance the performance and functionality of their designs.
Images for reference

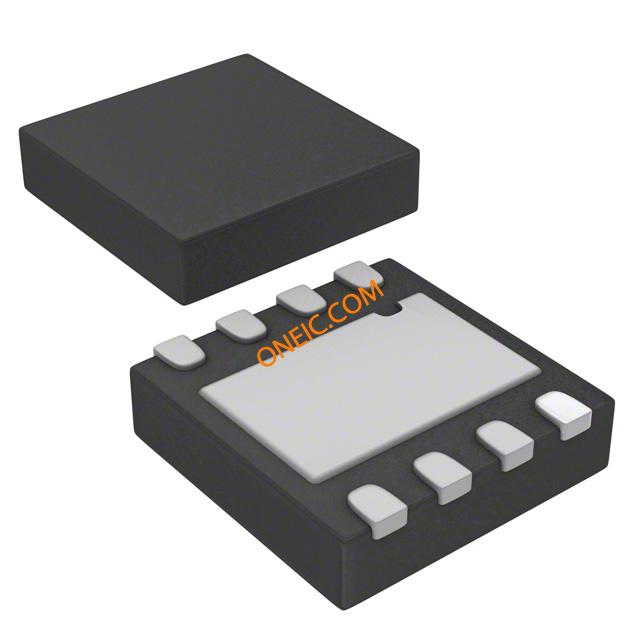

AD511x
