ACS756
Hall effect sensors for current sensing
Manufacturer： allegro
series introduction
The ACS756 series represents a cutting-edge line of Hall effect-based current sensor ICs, designed to meet the demanding requirements of both industrial and consumer applications. These sensors provide accurate, isolated current sensing, enabling engineers to monitor and control electrical currents with precision and safety. With their robust design and advanced features, the ACS756 series is an ideal solution for applications requiring high accuracy and fast response times.
One of the key features of the ACS756 series is its ability to measure both AC and DC currents with an impressive accuracy of up to ±1.5%. This level of precision is achieved through the use of Hall effect technology, which operates without direct electrical contact with the current-carrying conductor, thereby ensuring electrical isolation and safety. The device offers a wide sensing range, accommodating currents from a few amperes up to hundreds of amperes, making it versatile for various applications.
The ACS756 series is characterized by its compact and efficient design, which facilitates easy integration into existing systems. With a low-profile package and minimal footprint, these sensors can be seamlessly embedded into power management systems, smart grid applications, and electric vehicle technologies. Furthermore, the devices are equipped with built-in thermal protection features, enhancing reliability in high-temperature environments often encountered in industrial settings.
Suitable use cases for the ACS756 series include power supply monitoring, motor control, battery management systems, and renewable energy applications such as solar inverters and wind turbine controllers. Its high-speed response time makes it particularly suitable for dynamic applications, where real-time current monitoring is critical for system performance and safety.
In summary, the ACS756 series offers a compelling combination of accuracy, reliability, and ease of integration, making it an excellent choice for engineers and designers seeking to enhance their current sensing capabilities across a wide range of industries, including automotive, telecommunications, and industrial automation.
Images for reference

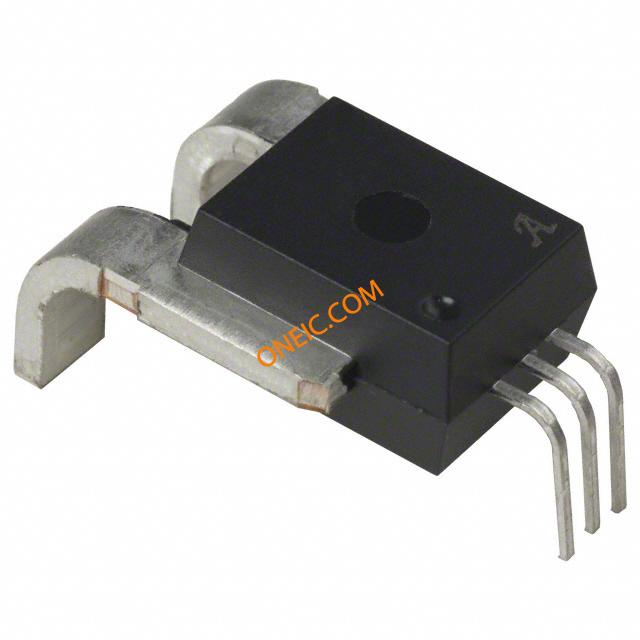

620-CB-PFF, CA Pkg
